I have started this section off to cover those bricks one finds as coping and edging on bridges, etc.

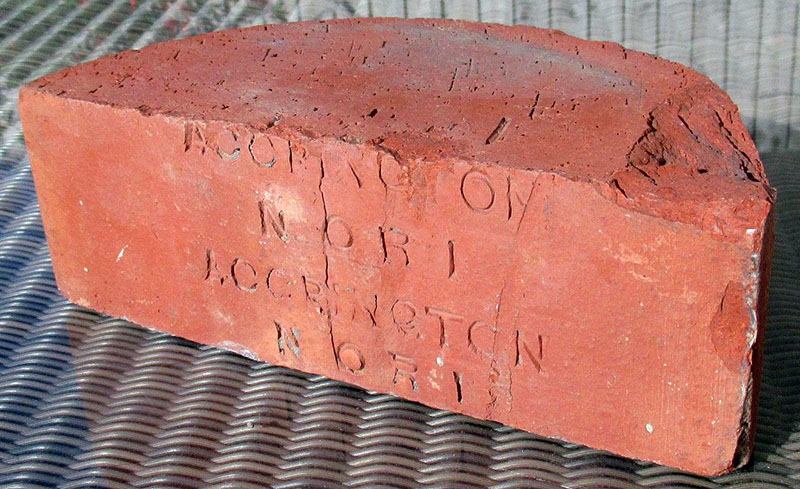

Wall capper from the NORI works in Accrington. Photo by Richard Matthews.
Photo by Elizabeth Thomson.

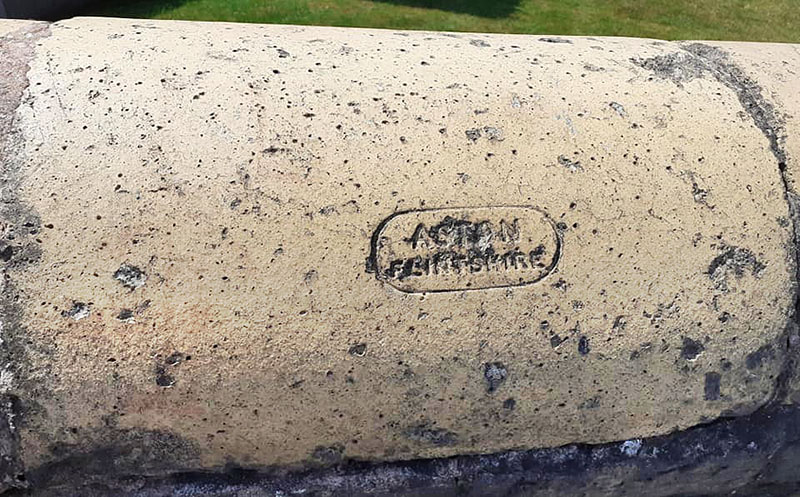

Seen on a garden wall in Sandycroft, Flintshire.

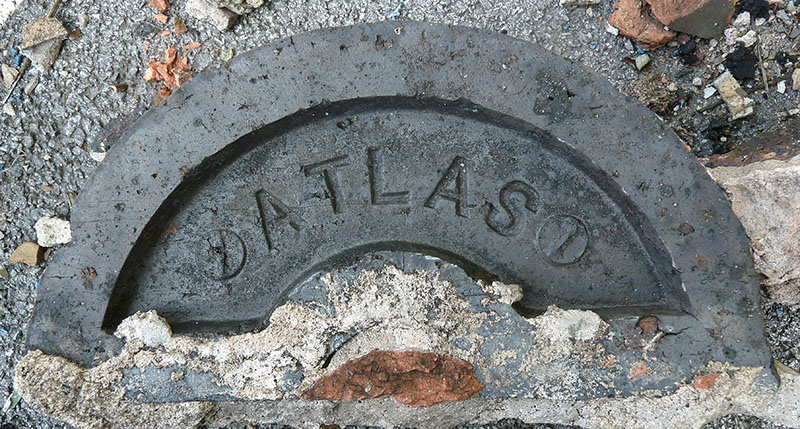

Barnett & Beddows, Atlas Brick, Pipe & Tile Works, Stubbers Green, Aldridge, Walsall. Atlas was their trade name. Info by Chris Deacon, photo by Darren Heywood.
Photo by Martyn Fretwell.
Photos by Elizabeth Thomson.
Photo by Martyn Fretwell.

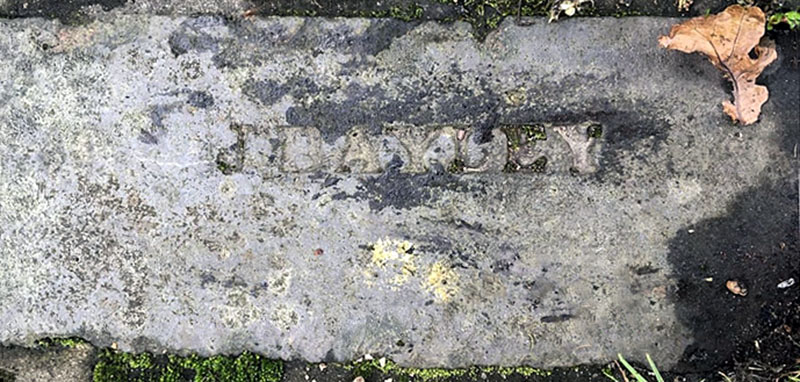

Kelly’s 1850 & 1860 editions lists James Bayley at Dudley Port, Dudley, then Jones’ 1865 edition lists James Bayley at Great Bridge. Spotted on a canal towpath on the Birmingham Main Line Canal by Elizabeth Thomson. Info by Martyn Fretwell.

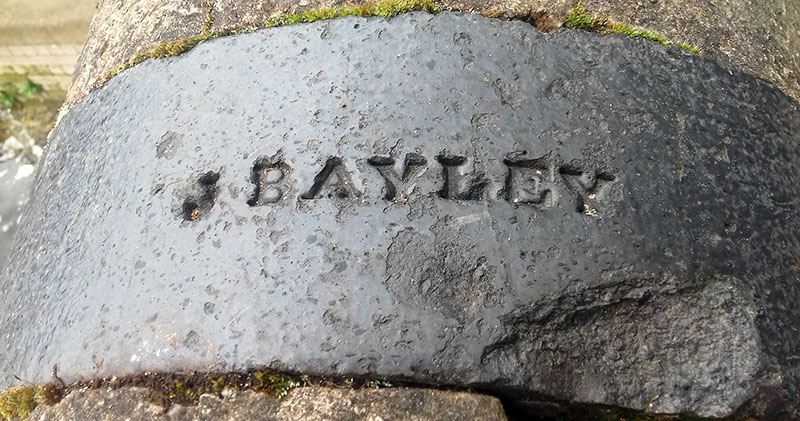

Seen at Edgbaston Reservoir. Photo by Theresa Casey.

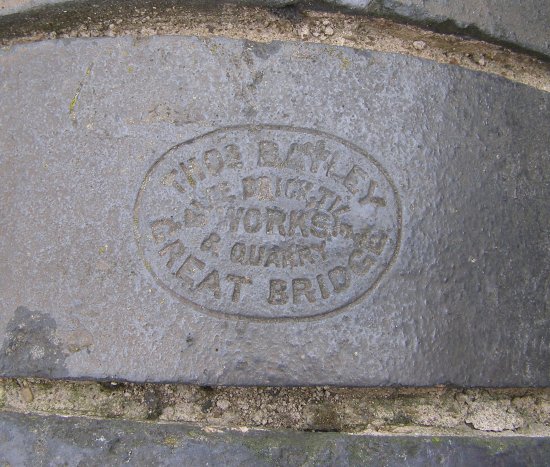

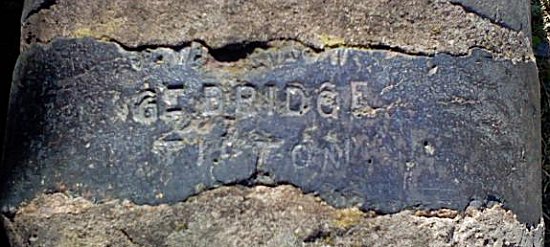

Thos. Bayley, blue brick, tile works & quarry, Great Bridge
Spotted by Phil Shaw on a bridge over the entrance to a disused basin at Smethwick Junction.

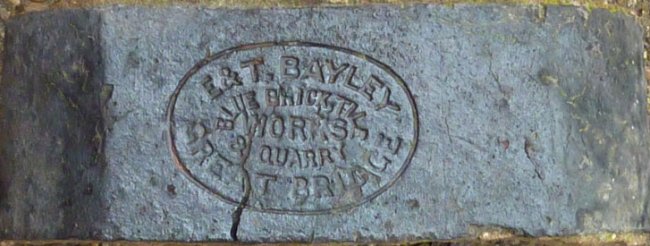

E & T Bayley, Great Bridge. Found at a brick reclamation yard in Spondon by Martyn Fretwell. Edward & Thomas Bayley are listed in Kelly's 1872 edition at Great Bridge, West Bromwich. The listing for this works in Kelly's 1876 to 1904 editions is Thomas Bayley, Golds Hill Brickworks, Great Bridge, Tipton & this is followed by the entry of Thomas Bayley Ltd. at the same address in Kelly's 1912 to 1940 editions. The works closed in 1940. Photo & Info by Martyn Fretwell.
Image by Richard Thorpe.
These were found on a bridge over the former Lancashire, Derbyshire & East Coast Railway just east of Bolsover Tunnel. The copings are about 18"x 6"x6". The railway opened in 1897 so the copings must be original. Photos by Simon Patterson.
The location is the foot of one of the piers of the Harringworth/Welland Viaduct, specifically the one to the right of the road in this view. As this appears to be original brickwork, it can be dated to 1875-8. Photo and info by Alan Murray-Rust.
Photo by Martyn Fretwell.
Seen on locks on the Stratford on Avon canal. Photo by Richard Thorpe.

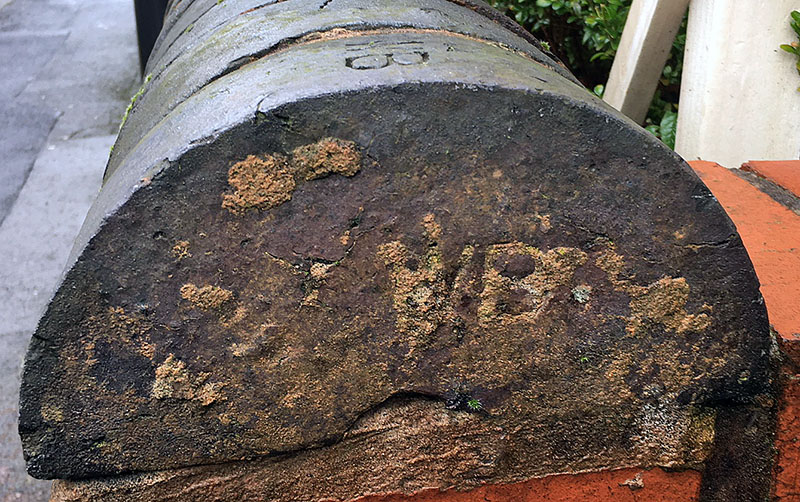

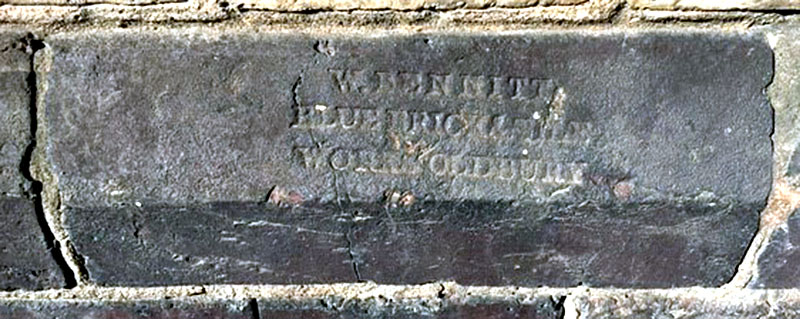

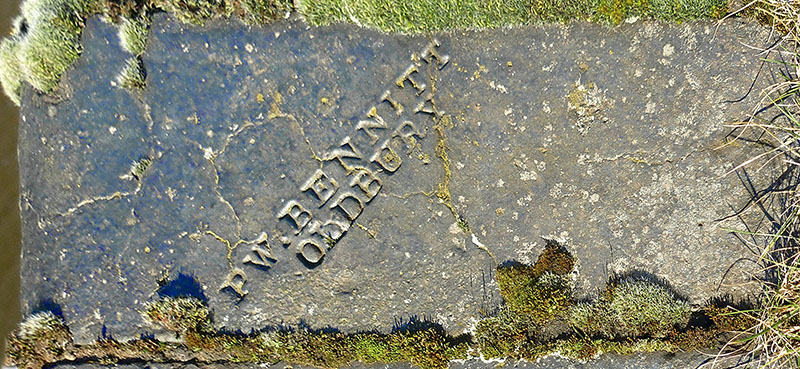

Pynson Wilmot Bennitt is listed in the Worcestershire Post Office Directory for 1876 as a Brick Manufacturer at Littlefields, Oldbury. The 1871 census shows him as MA Oxford and Brickmaster employing 14 men, 4 women, 7 boys and 13 girls. In 1881 he is shown as employing 30 hands and by 1891 he had ceased to be in business and was living off his own means.
These capping bricks on a wall in Harborne are likely to be from the Bennitt works. Photos by Elizabeth Thomson.

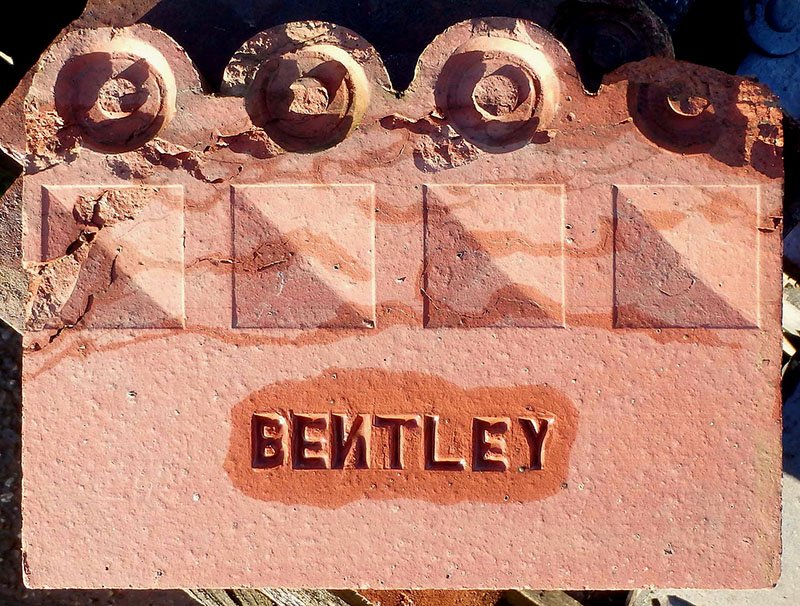

This garden edging is from Bentley Tileries Ltd., Bradwell Wood, Tunstall, Staffs. Kelly's Staffordshire Directory 1940. They seem to have traded from 1930s through to 1966 although the works itself dates back to at least the 1870s. Photo by Frank Lawson.
B.W. Blades is listed in Kelly’s 1850 & 1860 editions at Lea brook, Tipton. Brownlow William Blades appears on the 1881 census as a "Blue Brick Manufacturer", living in Swan Road, West Bromwich. His son had the same name, as did his father who was also a brickmaker from Northampton. The West Bromwich works was operating in the 1870s and was still in business in 1900.

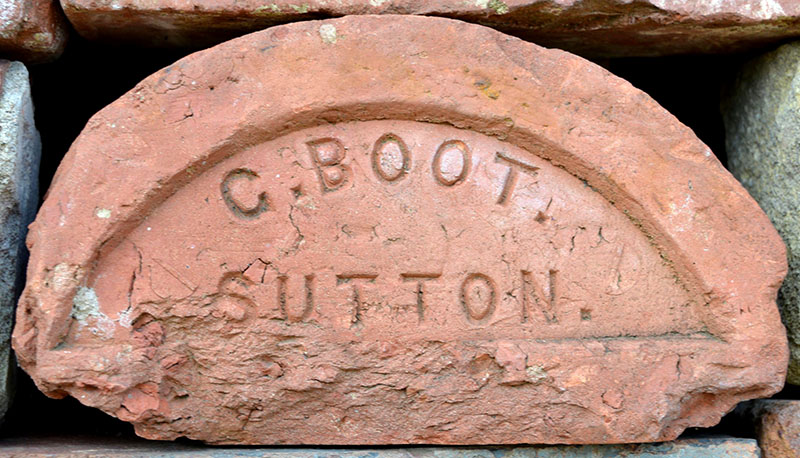

George Boot, Dalesforth Road, Sutton in Ashfield, Notts. Kelly's Nottinghamshire Directory 1908-1916. Photo and information by Frank Lawson.

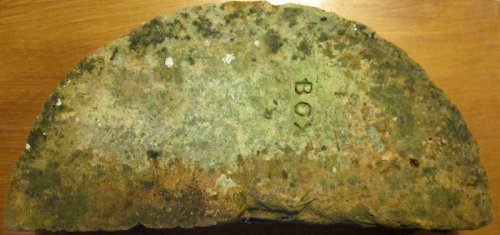

Made in Market Lavington, Wiltshire. William Box owned the Market Lavington brick works for most of the second half of the 19th century. Photo by Rog.
The Swan Lane brickworks, Nuneaton (now Croft Road) previously owned by Walter Handley was taken over Benjamin Broadbent, a Leicestershire builders merchant & Jacob Stanley in 1869. Shortly after forming this partnership Benjamin due to ill health took a back seat in the running of the company & Jacob's brother, Reginald took his place in running the yard. The partnership of B & S was dissolved in 1871 & the company was re-named Stanley Brothers. Photos courtesy of Sheryl Wrighting & this website. Full history of the company.
Spotted on the beach at Crosby, Merseyside.
Broseley Tileries produced bricks between 1882 & 1954. Photo by Martyn Fretwell.

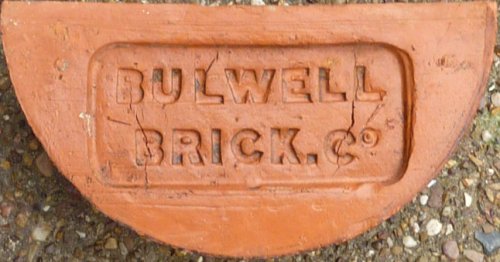

The Bulwell Brick Company had two works, one on Wells Road, Nottingham & this works is listed in Kelly's from 1891 to it's 1916 edition. The Kett Street works, Bulwell is listed from 1876 to it's 1932 edition, with this brickworks closing around 1940. Info and photo by Martyn Fretwell.

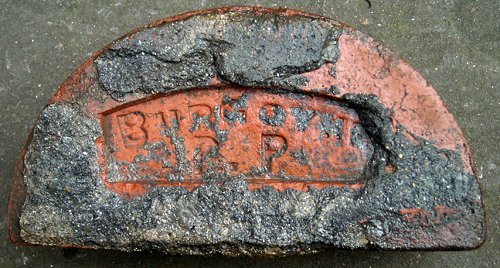

Photo by Lawrence Skuse, The P.P on the Burgoyne coping brick refers to "Pontypool" (from Little Mill, Pontypool).

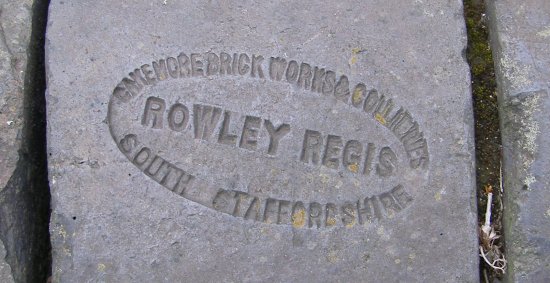

Cakemore brick works & collieries, Rowley Regis, South Staffordshire. Spotted by Phil Shaw on a bridge over the entrance to a disused basin at Smethwick Junction.
Photo by Hamish Fenton.
Photo by Martyn Fretwell.

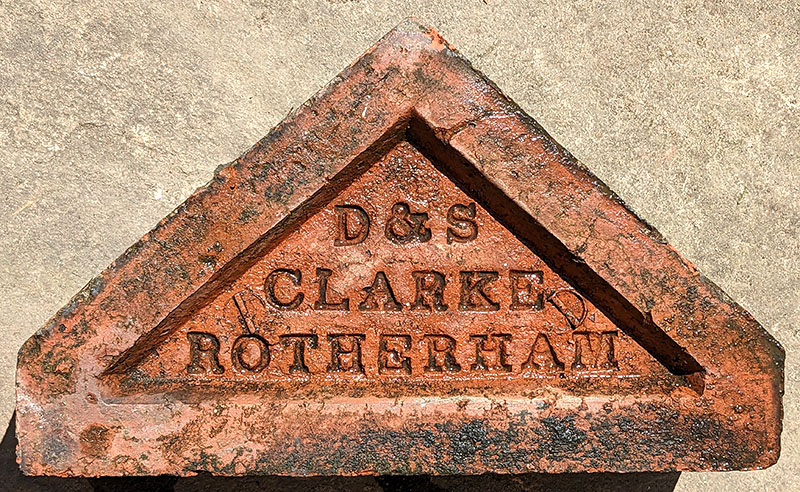

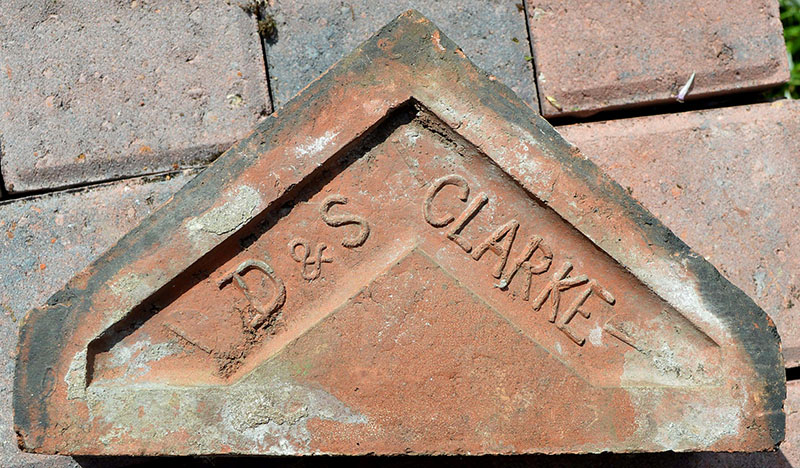

Daniel & Samuel Clarke, Sanitary Tube & Common & Firebrick Manufacturers, Greasbrough Road, Masbrough, Rotherham, Kellys 1893 Directory. Photo and info by Frank Lawson.

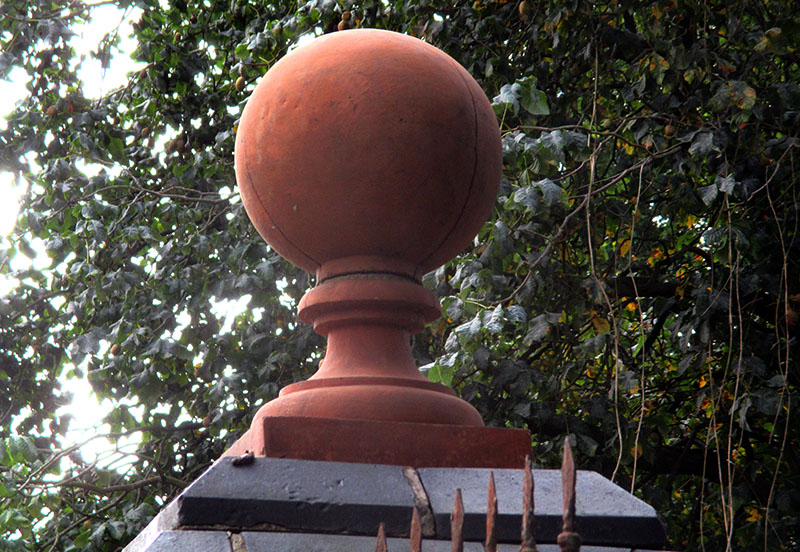

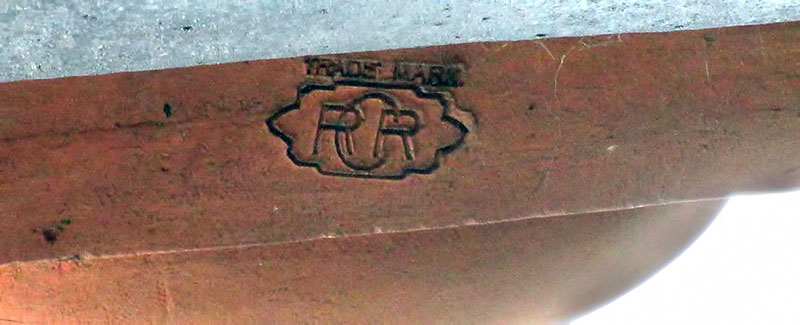

This gatepost finial is in Bridgnorth. The trade mark RCR stands for Roman, Clark & Rea who ran Wilderness Brickworks at Gresford, Wrexham until 1903 when the partnership was dissolved and Clark continued on his own. Roman was their trade name. Photo by Mike Shaw.
Coupe Brothers, Brickmakers who, according to several street directories, operated out of several addresses in Sheffield including Carlisle Street East & Sorby Street. Information from Frank Lawson and photo by David Kitching.

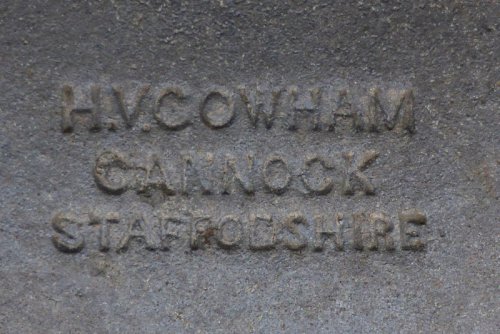

The only trade directory found is for a W.B. Cowham at Cannock in Kelly's 1868 edition, so I expect it is the same family. I recently spotted this coping brick on a small stream bridge at Rugeley near to Cawarden Reclamation Yard. Photo & Info by Martyn Fretwell.
Photo by Frank Lawson.

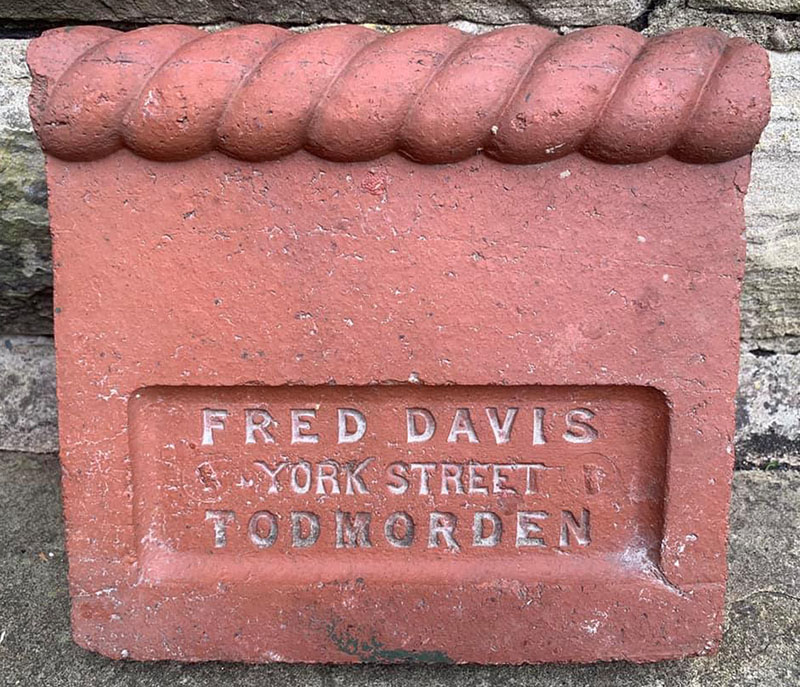

Fred Davis was a plumber, glazier and gasfitter in Todmorden. It is unlikely that he had a brickmaking business and this edging brick will have been made on contract and stamped for him. Photo by Jonathan Greenwood.

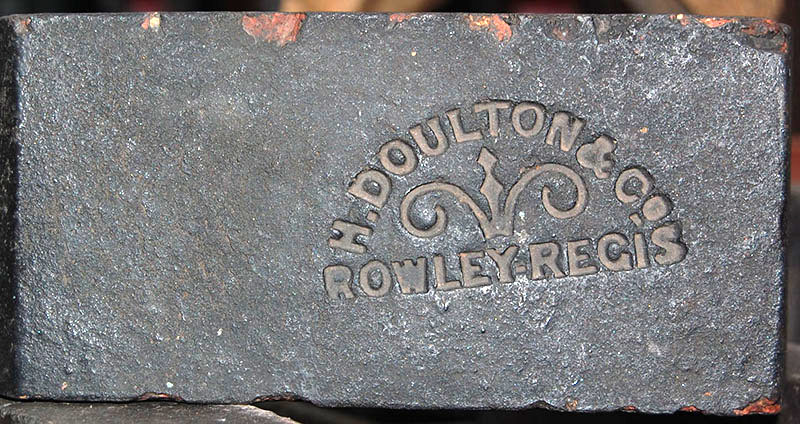

Photo by Andy Mabbett - (CC BY-SA 3.0)
Found by Frank Lawson in the towpath of the Worcester & Birmingham Canal, Edgbaston, Birmingham. Coneygre Brick Works, Dudley Port, Tipton.

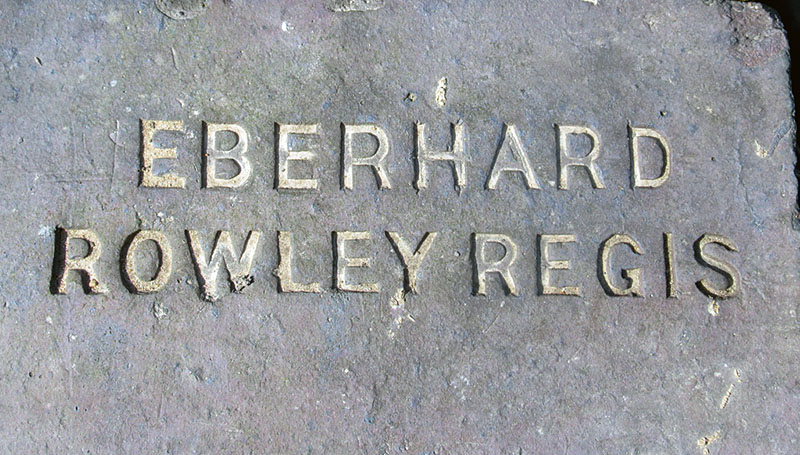

H.B. Eberhard is listed in Kellys 1860 & 68 editions at Waterfall Lane, Old Hill, Rowley Regis, Dudley. Info & Photo by Martyn Fretwell.
Photo by Mike Chapman.
Photo taken in Pontesbury by Michael Shaw.

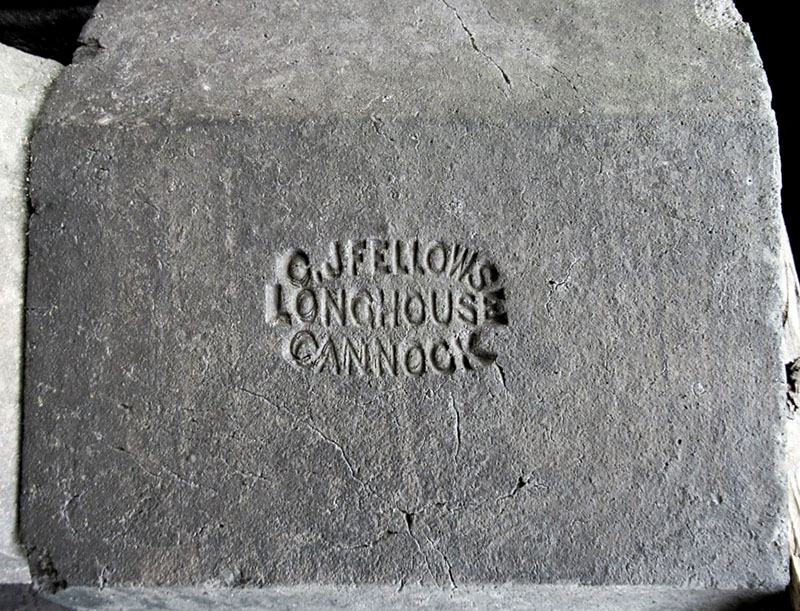

Charles J. Fellows, Longhouse Brickworks, Cannock is listed in Kelly’s 1872. This brickworks was next under the control of Henry Hawkins by 1888. Info & photographed at Four Oaks Reclamation Yard by Martyn Fretwell.

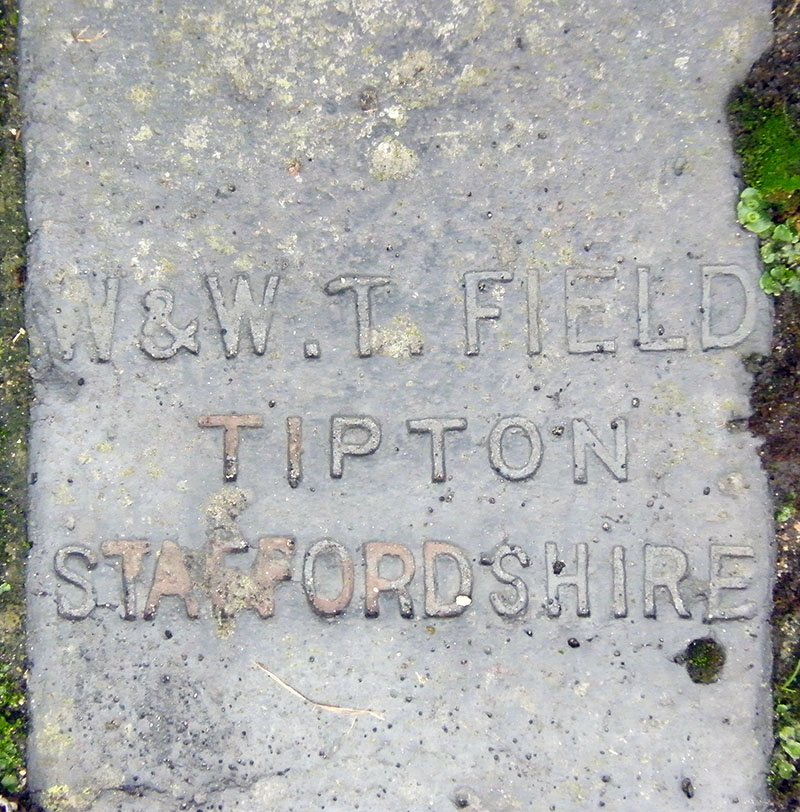

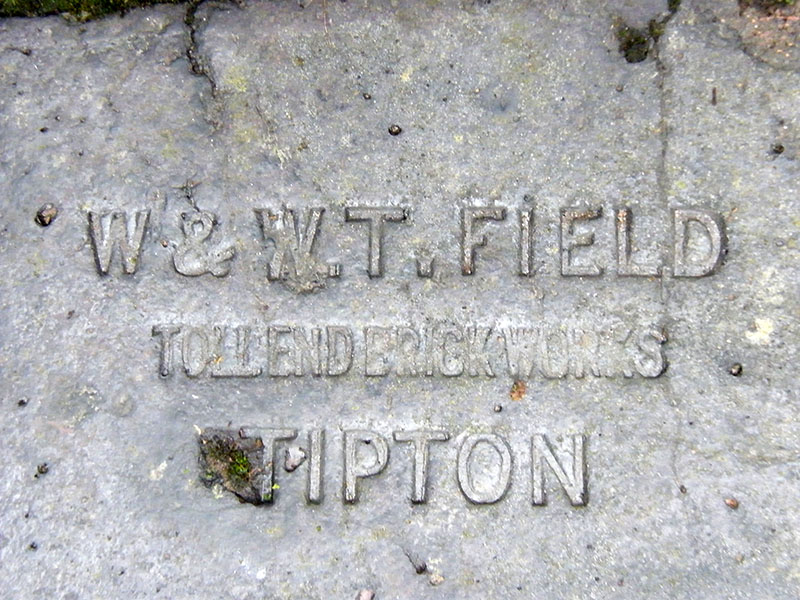

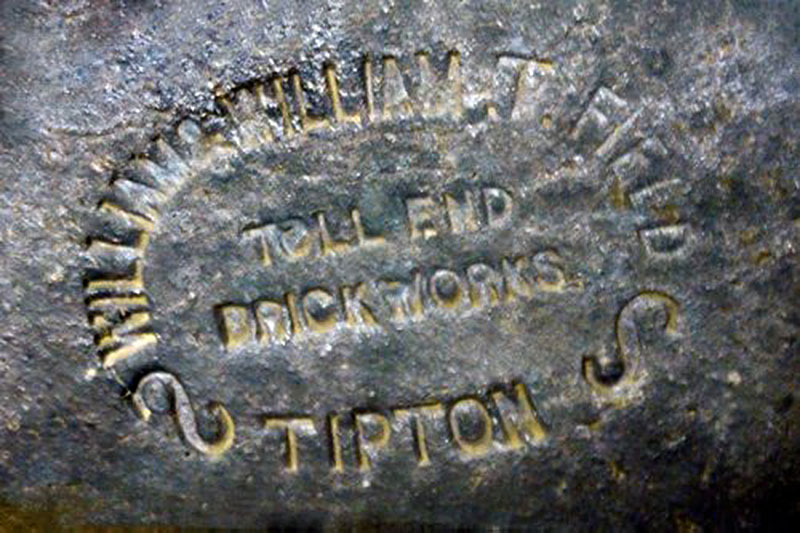

William & William T. Field are listed at the Toll End Blue Brick
Works, Tipton in Kelly's 1880 edition. The entry in Kelly's 1884
edition is just for William Field. Kelly's 1868 to 1924 editions
also records William Field as owning the Littleworth
Brickworks/Tileries at Hednesford. Photo & Info by Martyn
Phil spotted this one on a bridge over the Brades branch on the Wolverhampton Level of the BCN.
and another found by Phil nearby.
Photo by Mike Chapman.
Photo by Bill Whitehead.
Photo by Richard Thorpe.

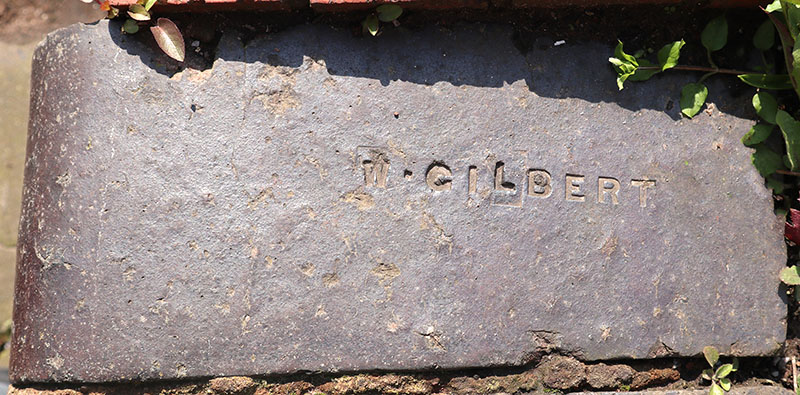

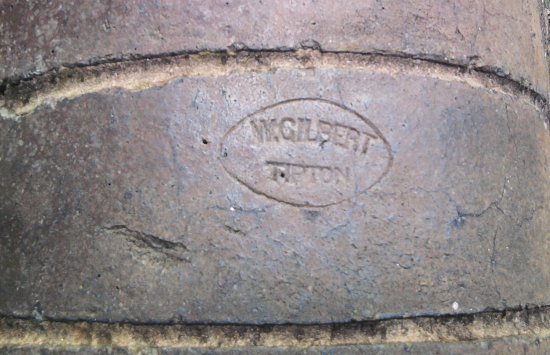

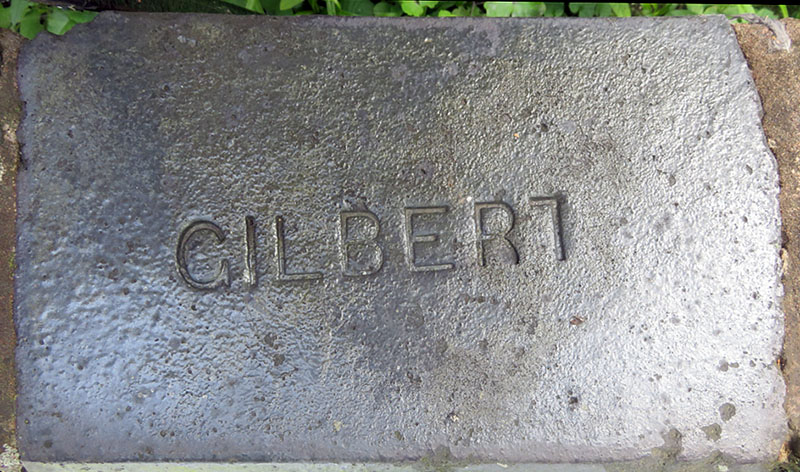

Martyn Fretwell writes ;- William Gilbert (blue) is listed in Kelly’s 1850 edition at Tividale Tileries, Tipton through to Kelly’s 1880 edition. From Kelly’s 1872 edition there is the addition of “& Son”
Spotted on the Walsall Canal, thanks to Phil for the photo.
Photos by Bill Whitehead.

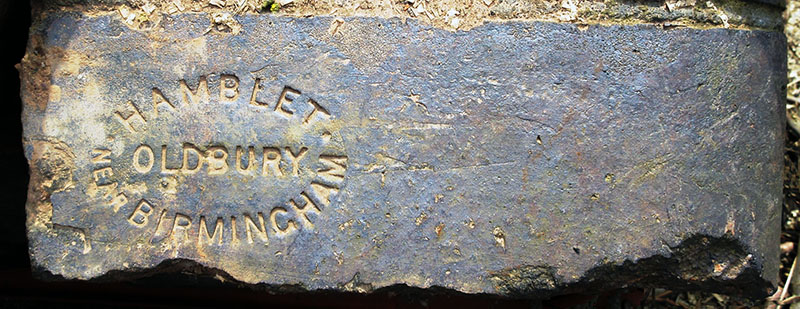

John Hamblet aged 18 is first listed as a brickmaker in the 1851 census living with his
brother Joseph Hamblet, brickmaker aged 31 in Rounds Green, Oldbury. So I am assuming John was
working for Joseph at this date. John is next recorded as brickmaking in Ampthill, Bedford. In the
1861 census John is listed as a Railway Contractor & Publican in Ledbury, after which John was
brickmaking again, this time in Southall, Middx. John declares himself bankrupt from this Southall
venture (reference the London Gazette) & was living in West Bromwich by the mid 1860’s & running

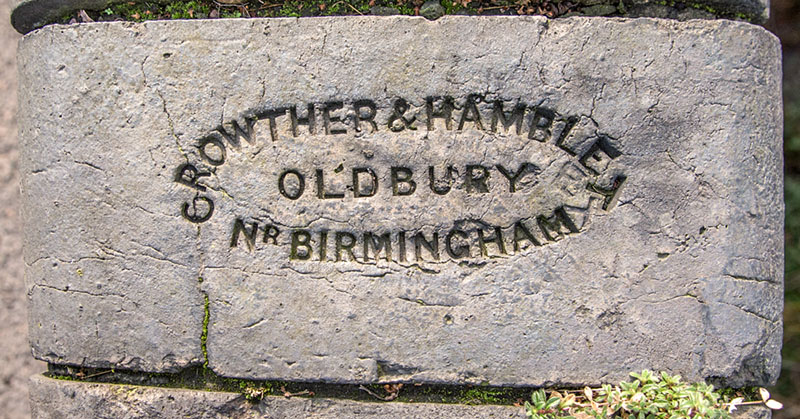

the Paddock Brickworks in Oldbury. Kelly’s 1876 edition records the partnership of Crowther &
Hamblet at the Paddock Brickworks, Oldbury & Charles William Crowther was John’s son-in-law.
Charles had married John’s daughter, Annie in 1873. This
Crowther Hamblet partnership may have only lasted between 1873 & 1876 as we find Charles Crowther is
listed as a baker in the 1881 census. John Hamblet was next in partnership with Samuel Tittley at
the Paddock Brickworks, but this partnership was dissolved in August 1880, (reference the London
Gazette). We then find in 1883 John Hamblet an out of work brickmaker formerly at the Paddock
Brickworks was declaring himself bankrupt (reference the London Gazette). However the 1891 census
records John Hamblet aged 58, as a Brick Manufacturer/Employer in Oldbury. So I am assuming this was
at the Paddock Brickworks again. The Paddock Brickworks is no longer shown on the 1900 OS map, so
must have closed in the 1890’s. Info by Martyn Fretwell.

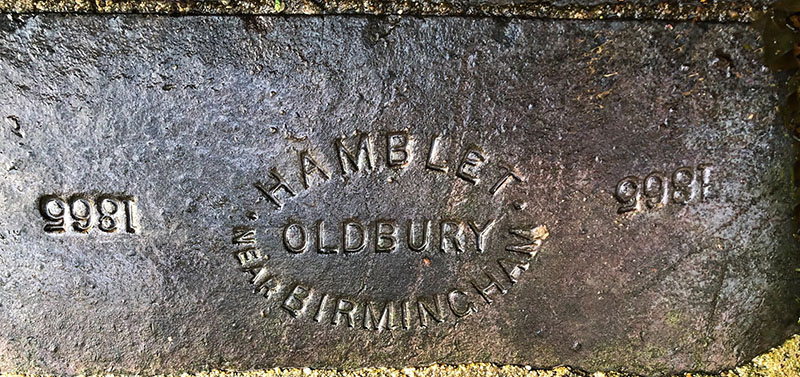

An 1865 example found by Darren Sladden in Great Dunmow.
Photo taken by Jo Roesen at Broadway station Worcs.
Terry Callaghan says that the bridge this C & H coping can be seen on, on the Sutton Park Line, Sutton Coldfield was built in 1879. Photo by Terry Callaghan.

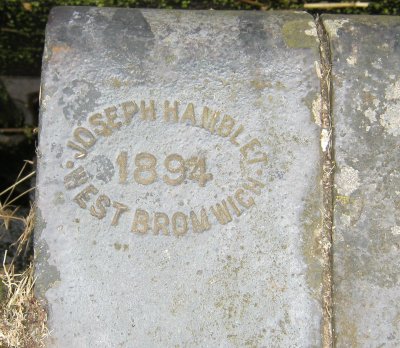

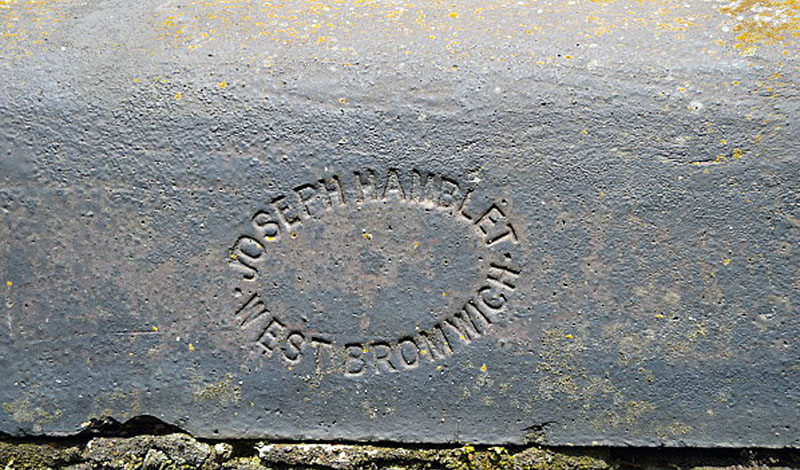

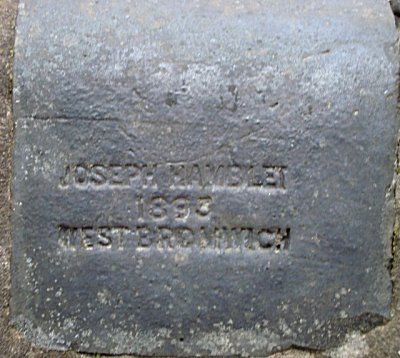

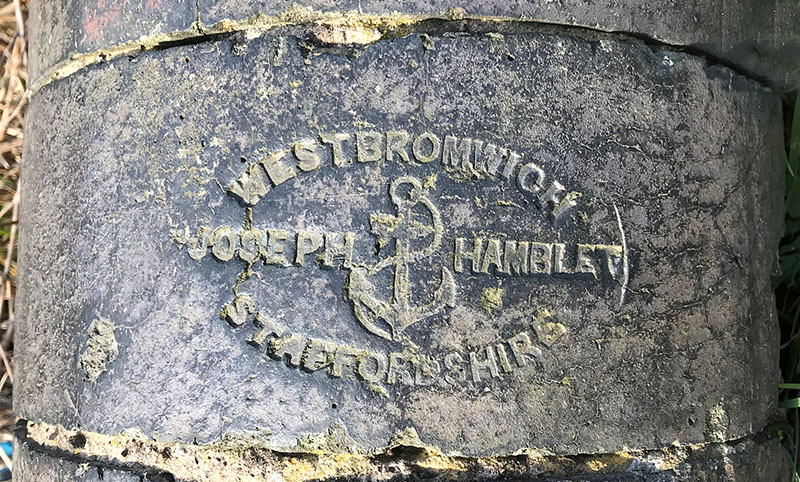

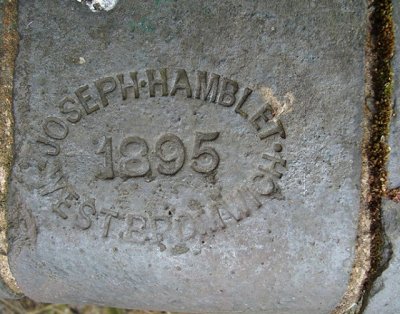

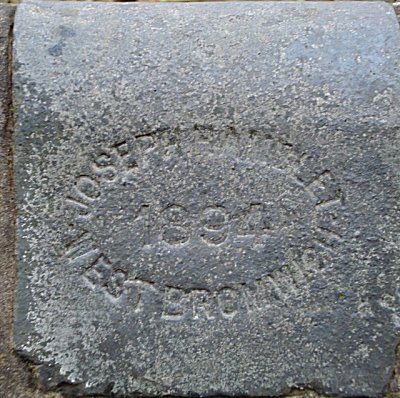

Joseph Hamblet founded the Piercy Brickworks in West Bromwich works in 1851 and it came to specialise in blue bricks. They were much in demand in the latter half of the 19th century for railway and other industrial construction.
Some more from the L.D & E.C.R just east of Bolsover Tunnel. They are about 18"x 6"x6". The railway opened in 1897 so the copings must be original. Photos by Simon Patterson.
This was found on a bridge where the L.D.& E.C.R. Beighton
line crossed the Midland Clowne branch line. Photo by Simon Patterson.

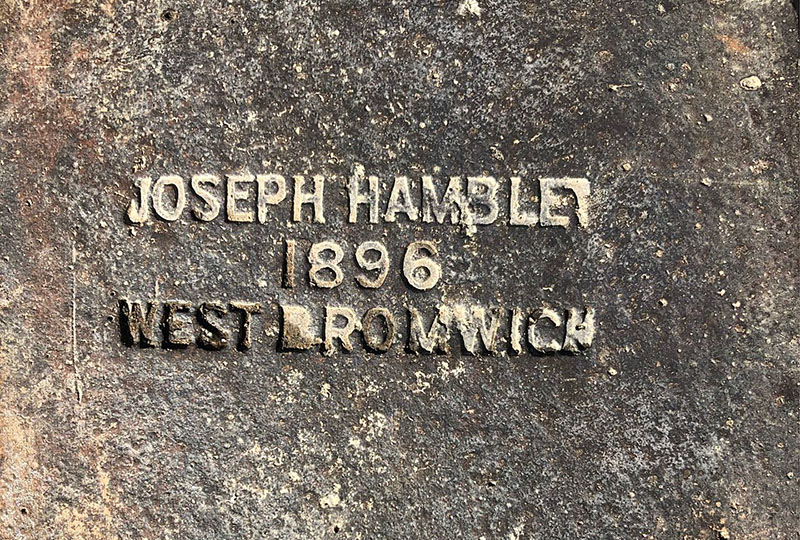

Coping from Woodford Halse Station. Photo by Zach Rambaldini.
Jeffrey Carter writes: The enclosed photo is from the lock edge of the newly reopened Droitwich canal. While we, The Coombeswood Canal Trust and BCNS undertook clearance testing with our pair of heritage working narrow boats 'Atlas' and 'Malus' for BW and Droitwich Canal Trust, June 2011.
Found by Glyn on the disused Barnstone branch line in Nottinghamshire
Photo by Terry Callaghan.

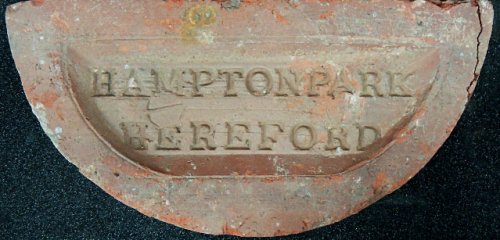

A brickworks site of the Hereford Brick and Tile Company. Richard Paterson writes: The Hampton Park Brick & Tile Works is described in 'Herefordshire Bricks & Brickmakers' by Edwin Davey & Rebecca Roseff (Logaston Press, 2007). It was 'a large brick and tile works 2km from Hereford city centre. There were adjacent clay pits, up to 5 drying sheds and 4 kilns which were extant in 1886'. The book contains an interesting description of the works and operations by a Mr Eckley, who worked there in 1936 and 1937, shortly before the works closed prior to the outbreak of war. From 1939 to D-Day the site was used by the US military and it is now a recreation ground and nature reserve.
Photo courtesy of Hereford Museum and Gallery, Herefordshire Museum Service.

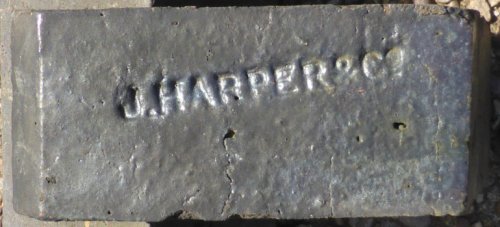

John Harper & Co. are listed in Kelly's 1876/80/84
editions at the Albion Works, Willenhall, Staffs. Primarily lock
manufacturers the company also made bricks at their Albion Works
which were used to build extensions to their existing buildings.
Info & Photographed at Four Oaks Rec. Yard by Martyn Fretwell.
Owned by the Hathern Station Brick & Terra Cotta Co. near Loughborough, the Hathern Brick Co. operated it's Cliff Brickworks near Kingsbury, Tamworth, Staffs. between 1882 & 1961. Today the site of this former brickworks is now the clay pit to Wienerberger's Kingsbury works and this modern works was built on the site of Whateley Colliery and it's brickworks. I photographed this coping brick on a disused Nottingham Suburban Railway bridge in Woodthorpe Grange park, so this brick can be dated as being made before 1889 when the railway opened. An aerial view of the works. Photos & Info by Martyn Fretwell.

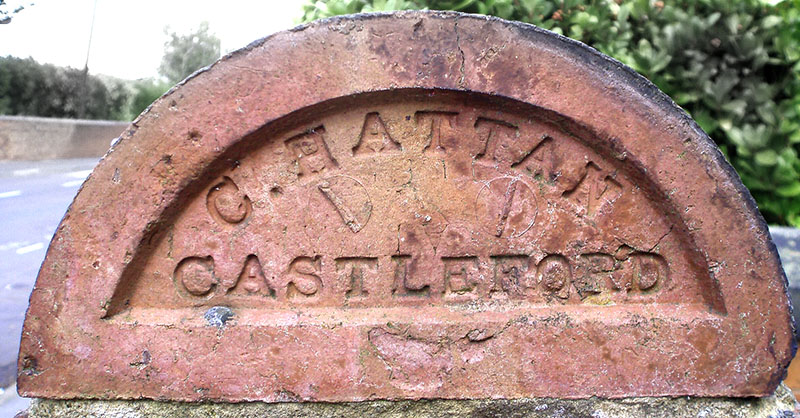

Chas Hattan was one of several brickmakers in the Castleford area. Listed in trade directories at Glasshoughton 1908/ 1912/ 1917 and at Middle Oxford Street 1927 / 1938. Castleford, West Yorkshire. Photo by courtesy of the Frank Lawson collection, taken in Normanton.
Spotted in Sheaf Street, Sheffield by AKA Demik.
Spotted on a railway bridge in Nottingham. The bridge was built in the 1930s, which dates this particular style of stamp. The stamped bricks are on the approach ramps rather than the bridge itself which has had the parapet slightly raised at some point. Photo and info by Alan Murray-Rust.

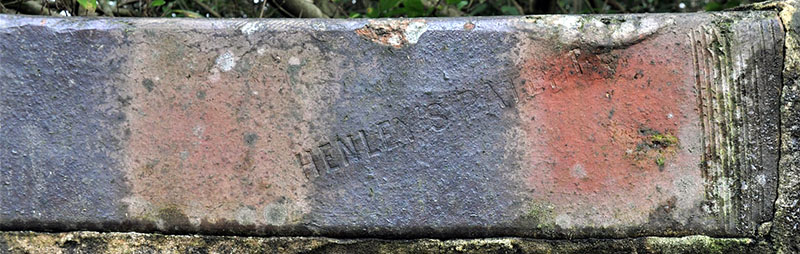

Found in Huddersfield, not sure what they are, but now used as wall toppers. they are about 30 x 24 inch and at least one marked HENLEY'S PATENT. Martyn Fretwell notes that George Middleton Henley (1836 - 1907) was an engineer & in the 1891 census listed as Manager of the Chytane brick and china clay works in Cornwall. The works advertised Henley´s Patent dovetail bricks for hollow walls amongst its products. Mr Henley appears to have been involved in china clay quarrying and drying, and tin mining in addition to brickmaking. He certainly took out at least one more patent (for china clay drying) but so far further brick patents have proved elusive. Martyn suggests that these patent bricks might have been made by Elliotts of Huddersfield. Photo by Chris Shaw.

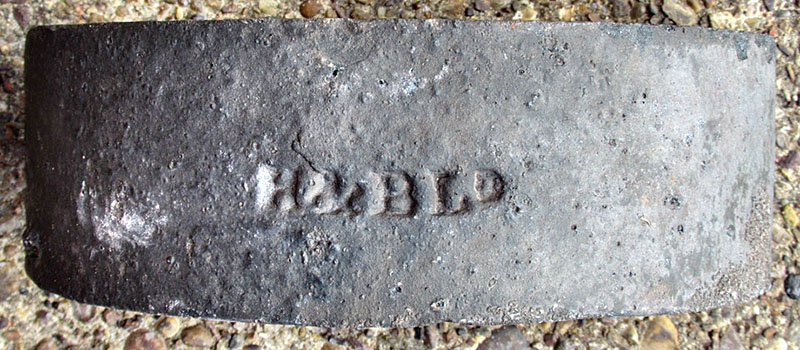

This is thought likely to be a product of Hobley & Burgess of Albion Street, Willenhall Staffordshire. They appear in Kelly's Directory for 1872. Photo by Martyn Fretwell.
Photo by Andrew Wood.

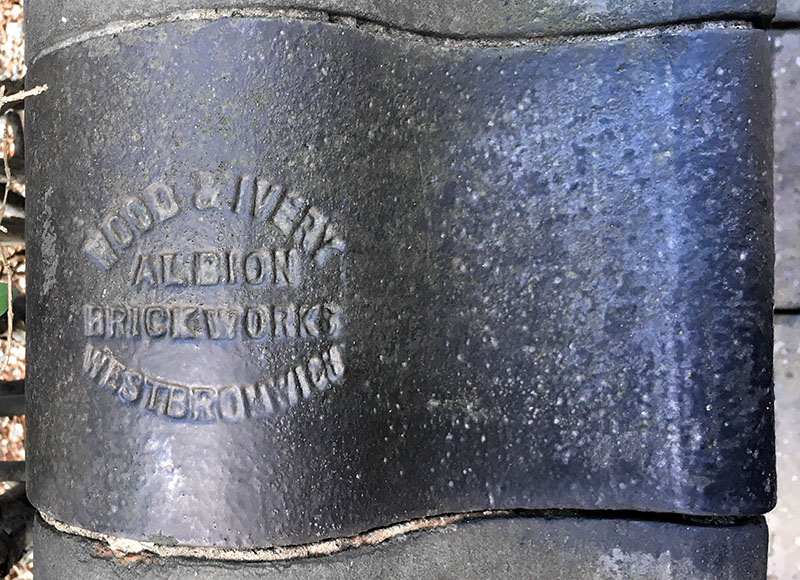

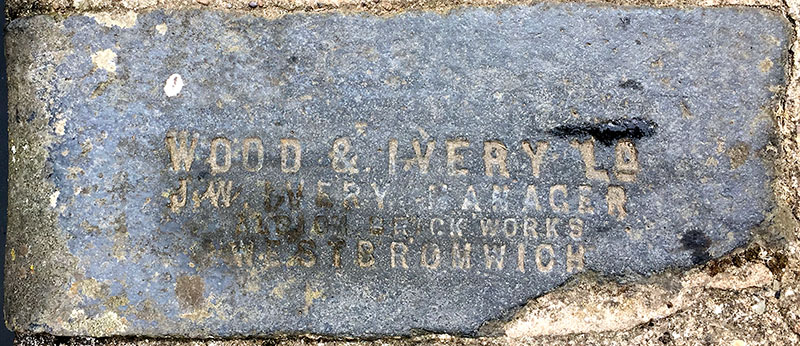

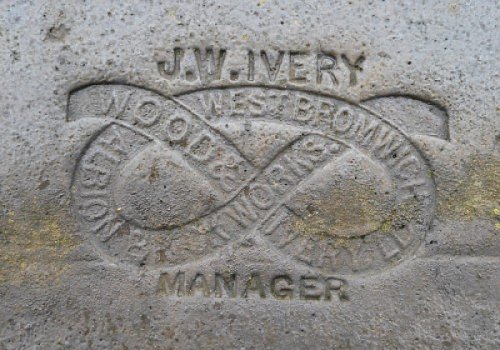

Photo by Ray Martin. See the entry for Wood & Ivery in the bricks section for more details of the company history.
John Jennings and Frederick John Hornsby were partners as brick tile and quarry makers at the Knowle Brickyard, Rowley Regis until this was dissolved in September 1860 with Jennings continuing the business. In the 1860s John Jennings and Nicholas Horace Chavasse were in partnership as brickmakers at the same works until this partnership was dissolved on 1st February 1866 with Chavasse continuing the business. From around 1860 and until at least 1866 Chavasse was the tenant of Rowley Hall. The Knowle works was subsequently taken over by Henry Doulton who is recorded there in Kelly's directory for 1872. Photo by Elizabeth Thomson.

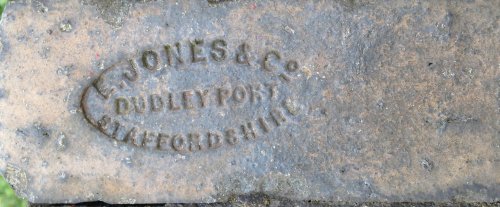

Found in Wednesbury by Steve Thorpe. Martyn Fretwell writes ;- Edward Jones & Co. (blue, red & ridge), Old Groveland Brick Works, Dudley Port, Tipton. Kellys 1884.
Kilnhurst Colliery Brickworks, Kilnhurst, Rotherham. Associated with Kilnhurst Colliery which was owned by several companies until finally becoming part of the NCB empire. It closed in 1989. Photo and info by Frank Lawson.

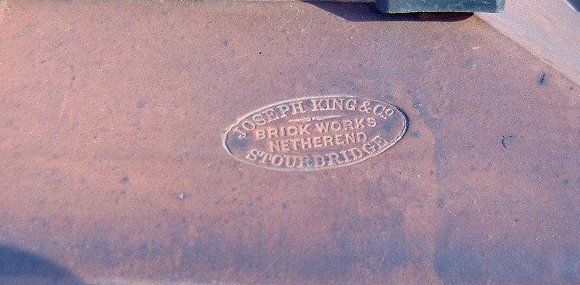

Made by Joseph King, Chapel terra cotta works, Netherend, Park Lane, Cradley, West Midlands. Photo by Michael Raybould.
Photo by Alan Davies.

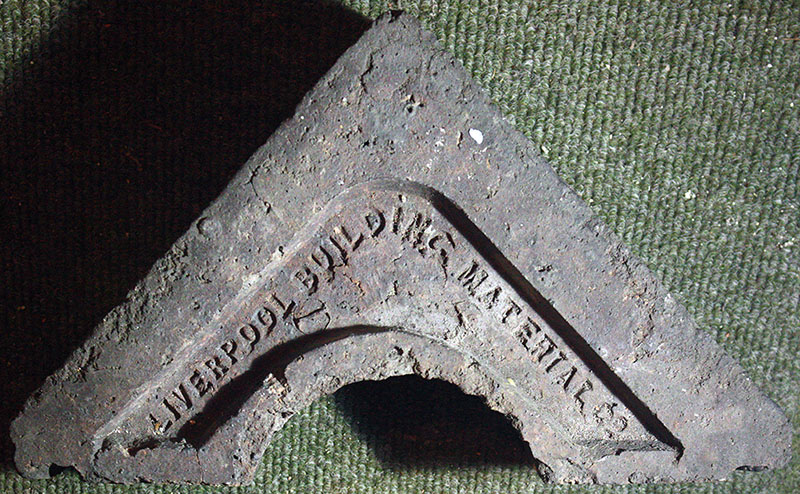

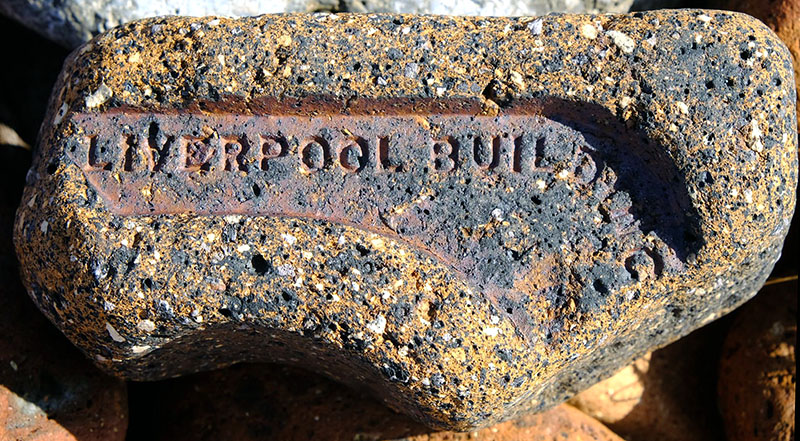

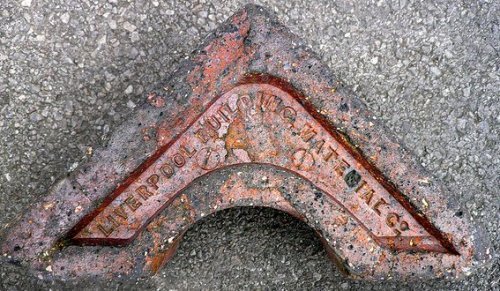

I suspect that this coping brick is from the Liverpool Building Material and Cement Co which seems to have been a builders' merchant from at least 1890 to the 1960s. I very much doubt that the company manufactured bricks and would expect them to have been made for it by a brick manufacturer not too far away, quite likely one of the North Wales firms, although they are listed as brick and tile makers in Gore's 1900 Liverpool directory.
Found and photographed on Crosby beach by Lesley Frances.

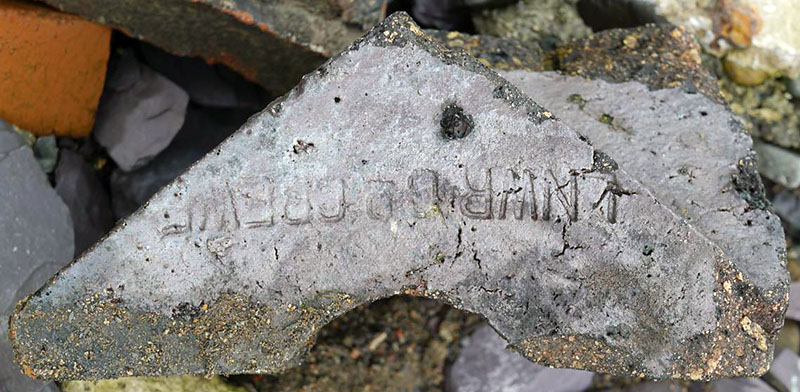

Photo by Hamish Fenton.
A Maltby Metallic coping brick made in South Yorkshire.

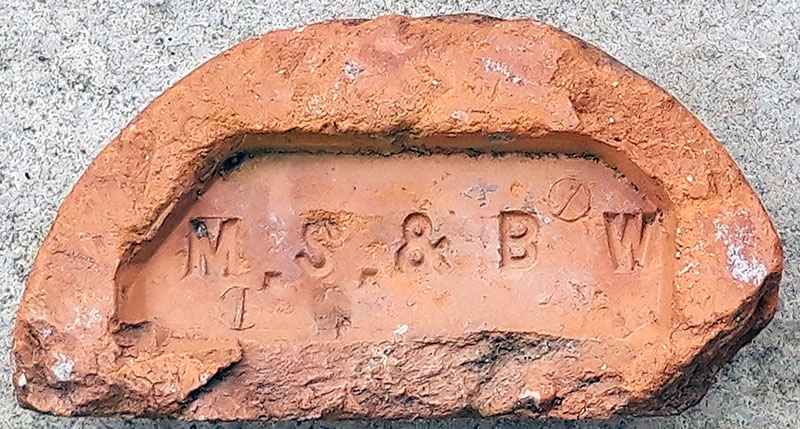

Mansfield Stone and Brick Works. Found by Simon Patterson in Creswell N.E. Derbyshire.
Found by Alwyn Sparrow on a railway bridge abutment in Warwick.

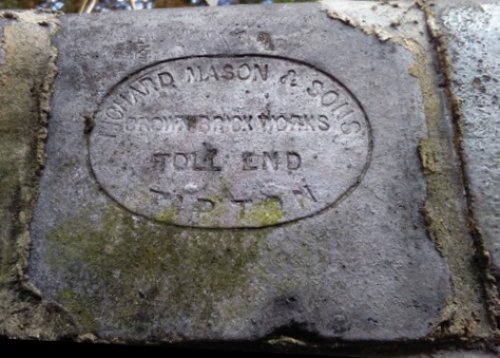

Richard Mason & Sons, Crown Brick Works, Toll End, Tipton. Richard Mason & Sons are first recorded in Kelly's 1884 edition, then the entry from the 1896 edition to the 1916 edition is Mason Ltd, (blue & red), Toll End, Tipton. Present day Bayleys Pool on Toll End Road is where they dug the clay from for the Crown Brickworks. Photo & Info by Martyn Fretwell.

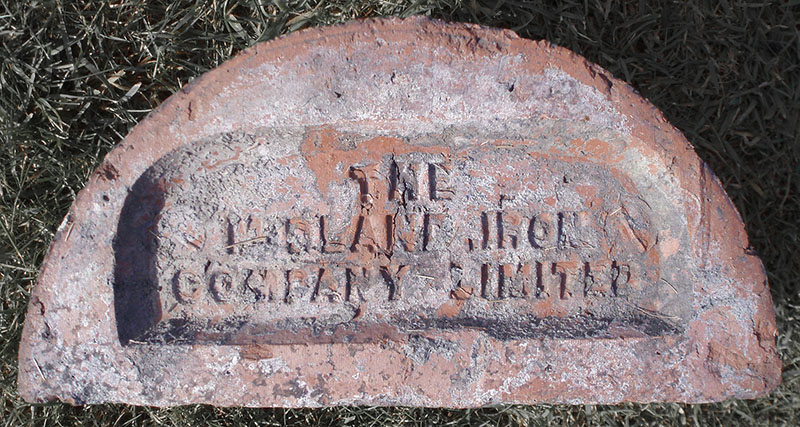

The Midland Iron Co. Ltd., Midland Road, Masborough, Rotherham. Further information at - www.gracesguide.co.uk/Midland_Iron_Co . The Midland Iron Co had a brickworks in Rotherham. George C. Hague, the proprietor of The Midland Iron Company, Rotherham was also a partner in the Manvers Main Colliery Company. Photo by courtesy of the Frank Lawson collection.
Spotted in Bridgnorth by Maurice Stokes
Coping brick on a wall in Warrington.

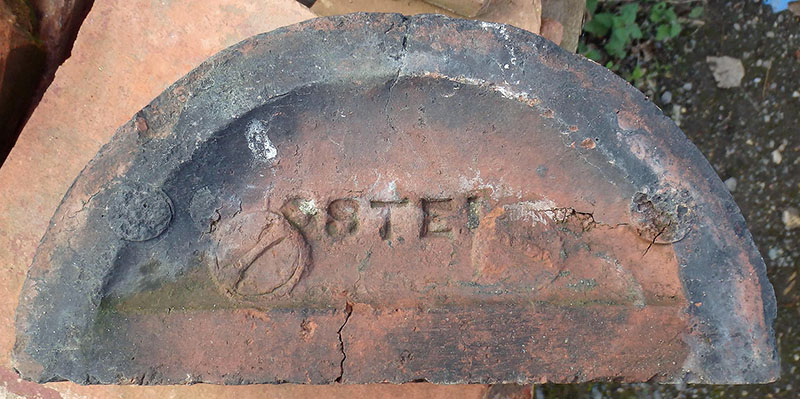

Photo by Martyn Fretwell. Nostell is a village near Wakefield, West Yorkshire. The works is still open today as part of Ibstock Brick.
Photo by Martyn Fretwell.

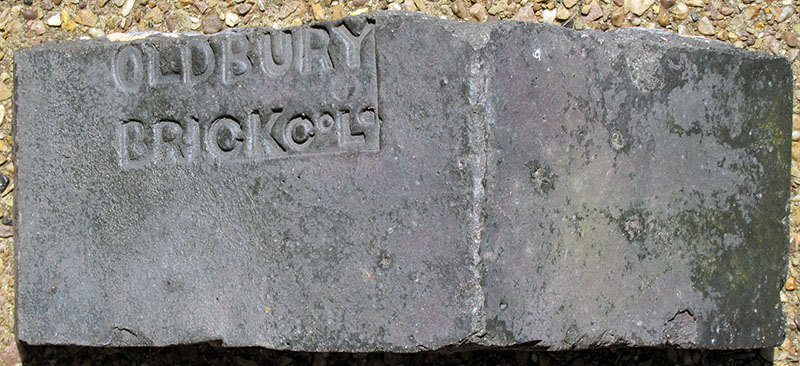

The Oldbury Furnace Yard Brick & Tile Co. Ltd. is listed with offices at 82 New Street, Birmingham in Kelly’s Birmingham 1883 edition. Then the 1884 Worcestershire edition of Kelly’s reveals the Oldbury Furnace Yard Brick & Tile Co. Ltd. was on Inkerman Street, Oldbury with Joseph William Howlett as Managing Director. Kelly’s 1888 edition now records the works was being run by Joseph William Howlett in his own name. The London Gazette dated 25th of March 1890 records the Oldbury Furnace Yard Brick & Tile Co. had been struck off the Joint Stocks Register & were declared Insolvent. The 1886 OS map shows there were two brickworks on Inkerman Street & the Oldbury company's works was the one nearest Freeth Street. The next owners of this works in Kelly’s 1892 edition were Allbrooke, Haynes & Allbrooke & their entry reads Furnace Yard Brickworks, Oldbury (Late Oldbury Brick Co.). The other brickworks on Inkerman Street, called the Newfield Brickworks was owned by Pynson Wilmot Bennitt. Photo & Info by Martyn Fretwell.

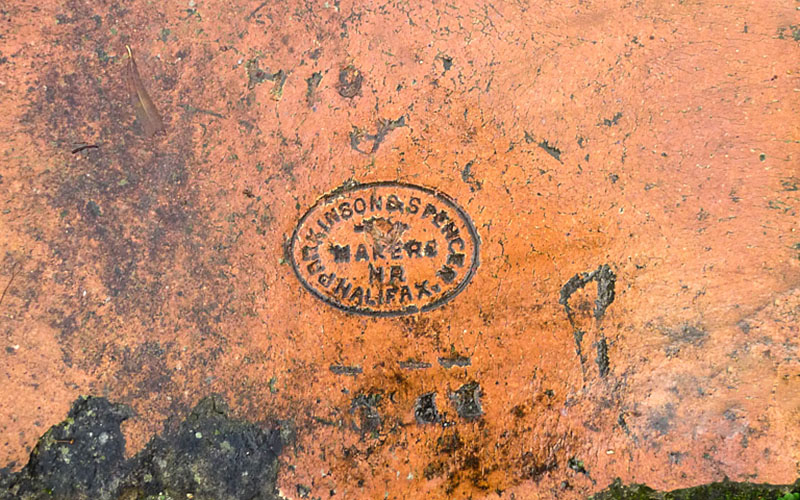

Parkinson & Spencer, Ambler Thorn, Halifax. Listed from 1917 in trade directories and still operating as Parkinson & Spencer Refractories in August 2012. Seen at the Bracebridge Lock on the Chesterfield Canal at Worksop. Info by PRBCO, photo by Darren Haywood.

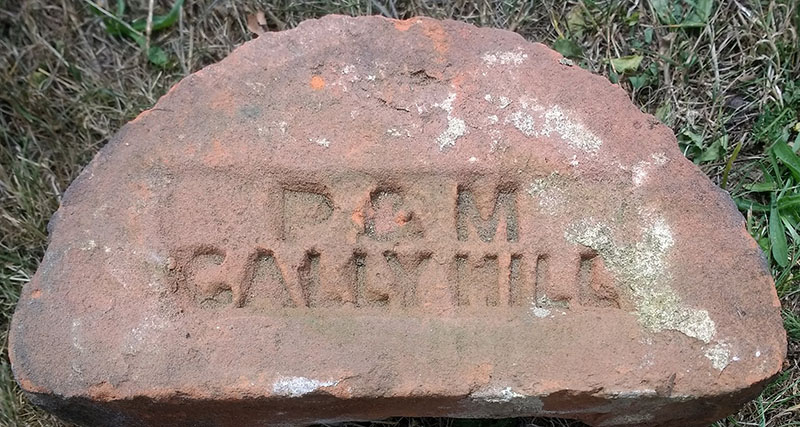

Parks & Marshall, Gally Hill Brickworks, Coxheath Road, Church Crookham, Hants.
The Pinewood Estate Brick & Tile Co. Chapel Lane, Little Hungerford, West Berkshire. Photo by Norman Whitehorn.

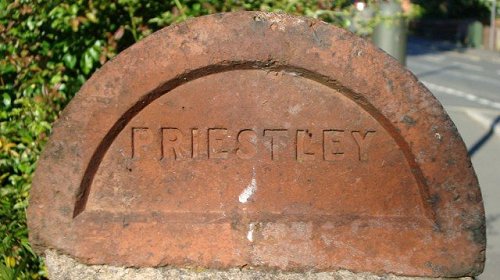

Found on a wall at Brimington, Chesterfield by Simon Patterson.
Simon adds this information: From the 1881 census Henry Priestley age 24 brick manufacturer living Sheffield Rd. Whittington. From the 1891 Kelly's Directory for Whittington: Henry Priestly Grocer, Draper and Brickmaker, The Brushes, Whittington.
Photo taken in Copthorne Road, Shrewsbuy by Michael Shaw.
Photo by Andrew Batson.

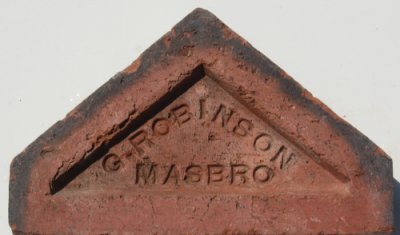

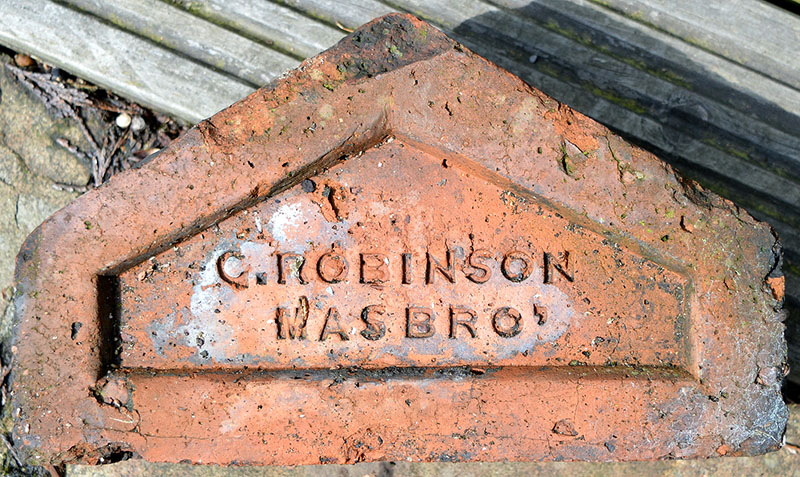

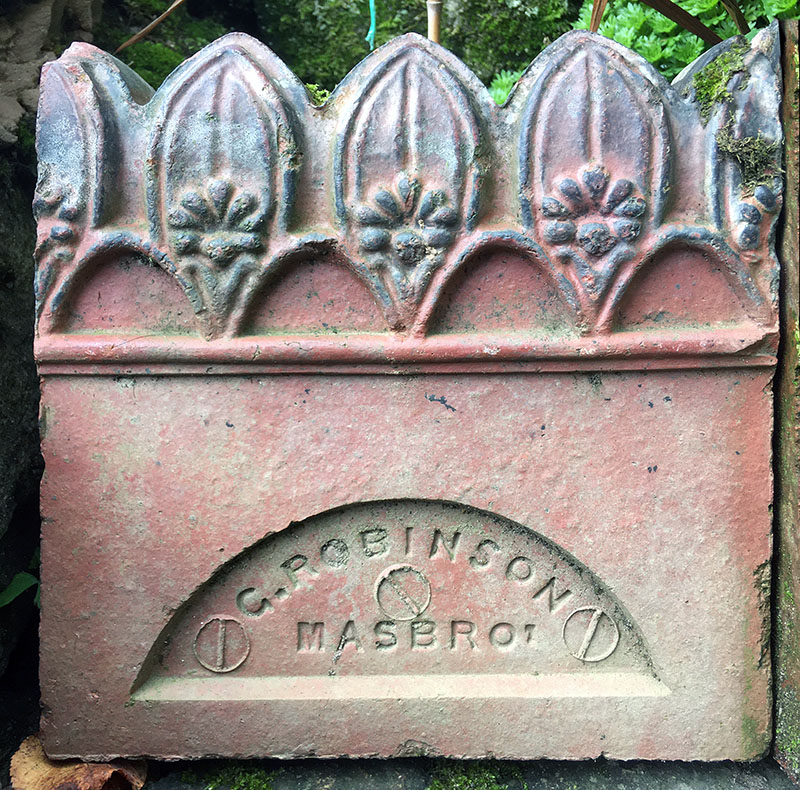

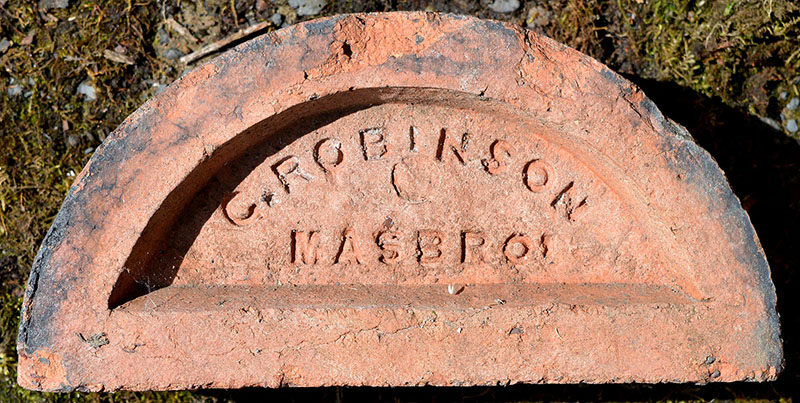

George Robinson, Wortley Road, Masbrough, Rotherham is listed as a brick manufacturer in Kelly's Sheffield & Rotherham Directory 1893. Kelly's West Riding Directory of 1881 records - James & George Robinson, Wortley Road, Masbrough, Rotherham as Brick & Tile Makers. An obituary notice in the London Gazette dated November 13th 1885 records the address of the brickyard as North Greaves Brickyard, Masbrough, Rotherham. Photos and info by Frank Lawson.
Seen at Easton Neston by Nigel Furniss.
Seen on the parapet of a railway bridge at Bartlow in Cambridgeshire. Photo by Sid Cat.
Photo by Bill Whitehead.

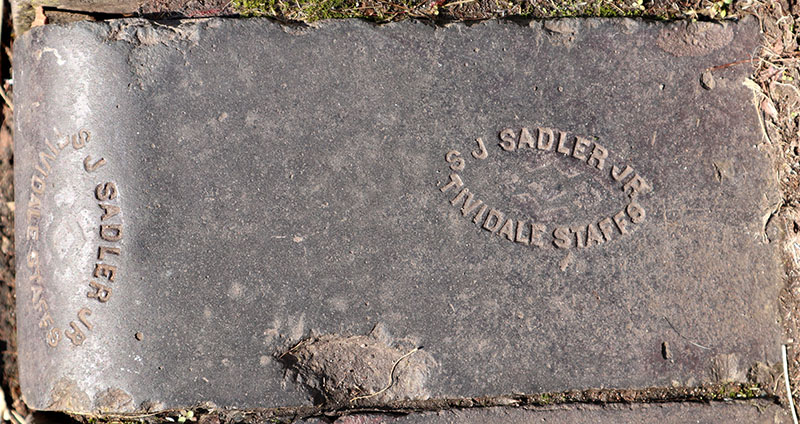

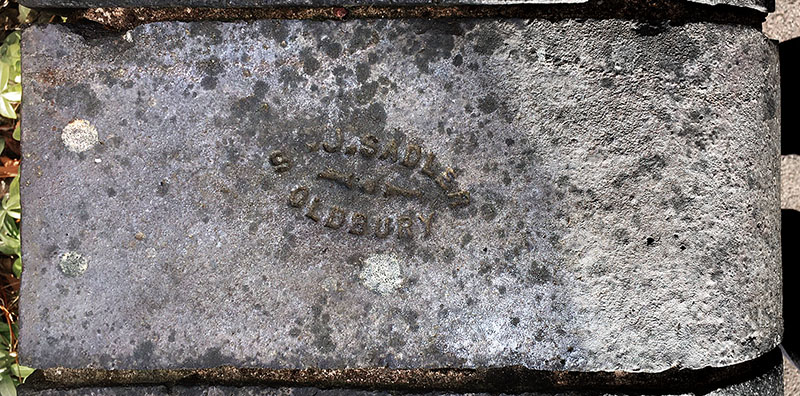

Samuel & James Sadler at the Portway Road Brickworks, Oldbury. Kellys 1860 to
1872. Info by Martyn Fretwell, photo by Elizabeth Thomson.
Photo by Martyn Fretwell.
George Shelton & Son are listed in Whites 1875 edition with the address of Sheepcote Street in the Brick & Tile Manufacturers section. The rest of the listings 1876 to 1940 for this company, either as George Shelton & Son, James Shelton & Co, or Shelton & Co. then appear in the Brick & Tile Merchants section at Sheepcote Street & in some at 58, Water Street. So it appears this company was only making coping bricks around 1875 at a location which is unknown because old maps show both Sheepcote Street & Water Street are next to the canal in the centre of Birmingham in built up areas, so these address will have been the company’s sales & distribution depots. Photo & Info by Martyn Fretwell.

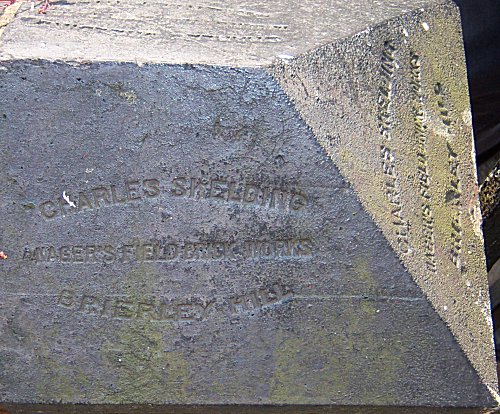

Charles Skelding, Nager's Field brick works, Brierley Hill, thanks to Velda for the contribution.
See Skey brick entry for info. Photographed at Four Oaks Reclamation by Martyn Fretwell.
Started in 1895 as Stanley Brothers Ltd. covering 145 acres at Stockingford on Nuneaton Common. They were one of the largest manufacturers of clayware products in the U.K., supplying over 4,000 customers in 1895. There were also separate brickyards owned by the company, and they operated two collieries. They were worth over '114,000 in 1895, (over '11,500 million today) !! Most of the sites have been redeveloped for housing, the works finally closing on 31st January 1988, but most of the commercial records have been saved. Further reading is to be found in the book NUNEATON & BEDWORTH COAL, STONE, CLAY & IRON by Peter Lee. Photo and info by Nigel Furniss.

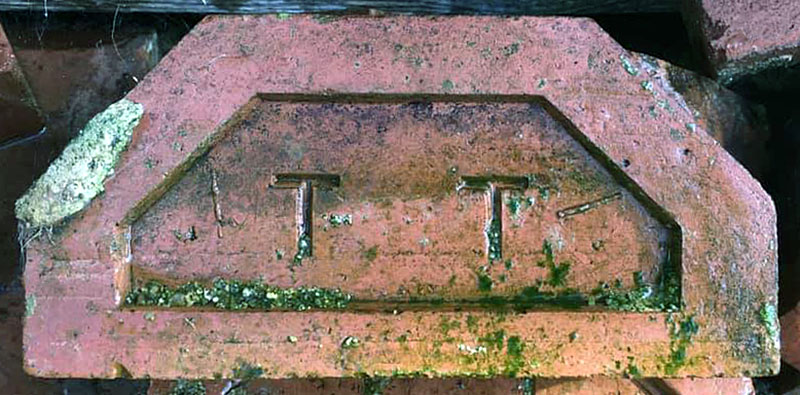

Found at Paignton by Taj Jat. The best I can suggest is that the initials stand for Thomas, Torquay. William Thomas & Co Ltd was a longstanding brickmaking business in the area. The business is listed at Torquay Yard, Torquay, & Lowesbridge, Newton Road, St Mary Church, Torquay.
E.D. Taylor, Cannock, Stafford is listed in Kelly's 1860 edition. Info & photographed at Cawarden Reclamation by Martyn Fretwell.

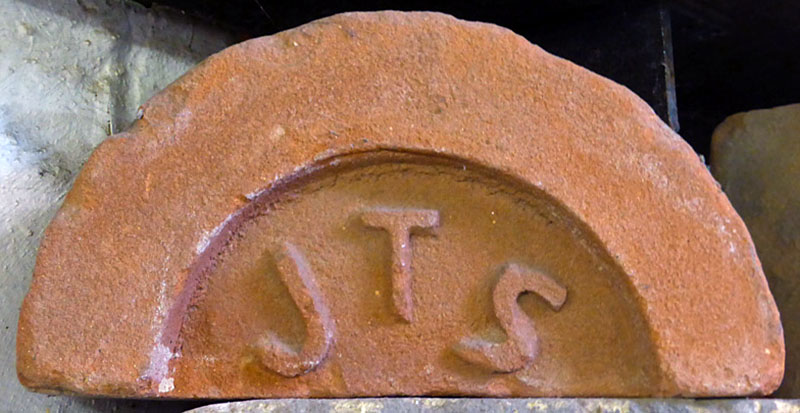

John Taylor, Sible Headingham, Halstead, Essex is listed in Kellys 1886 edition. Photo & Info by Martyn Fretwell.

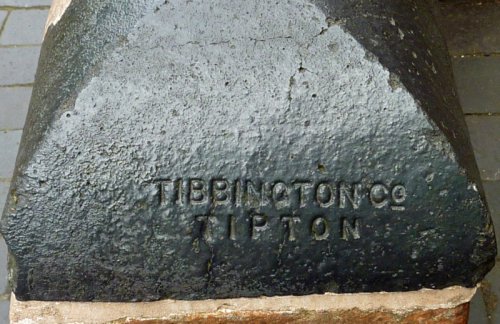

Kelly's 1876 edition lists Tibbington Collieries & Brick Works, E. Howl manager at Princes End, Tipton. Info & photographed at the Black Country Living Museum by Martyn Fretwell.
Photo by Martyn Fretwell. Tim Lawton writes: I believe this was made at the Twentywell Brickworks located in Bradway, Sheffield, adjacent to the railway cutting off Twentywell Lane. From what I can glean from the old ordnance survey maps, the works was in operation from at least 1875 through to the 1950s (maybe later). Interestingly the works seemed to manufacture stoneware also. Malcolm Adlington adds: Twentywell closed in 1939, but wasn't demolished until the late 1950s or early 1960s.
No Info - Photo by Martyn Fretwell.
This one forms part of the coping to the churchyard wall at Bleasby, Notts, photo by Alan Murray-Rust.
Photo by Ray Martin, taken at Sutton Coldfield station.

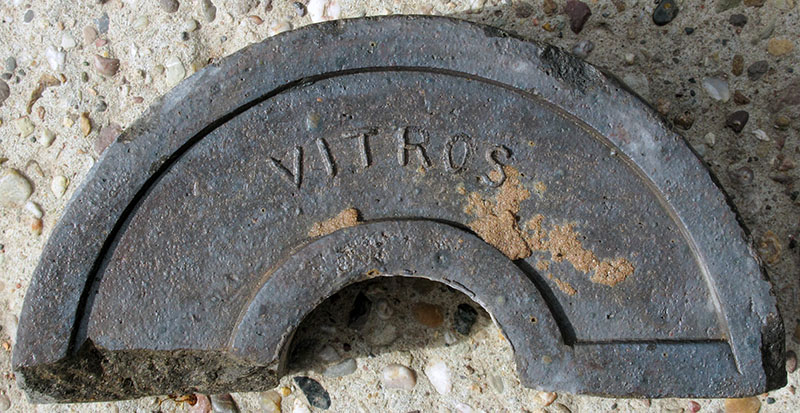

The North Staffordshire Brick & Tile Co. Ltd. had an extensive works at Chesterton,
Newcastle-under-Lyme, Staffs. VITROS seems to have been a trade brand which the
company used for a number of its products. Photo by Martyn Fretwell.

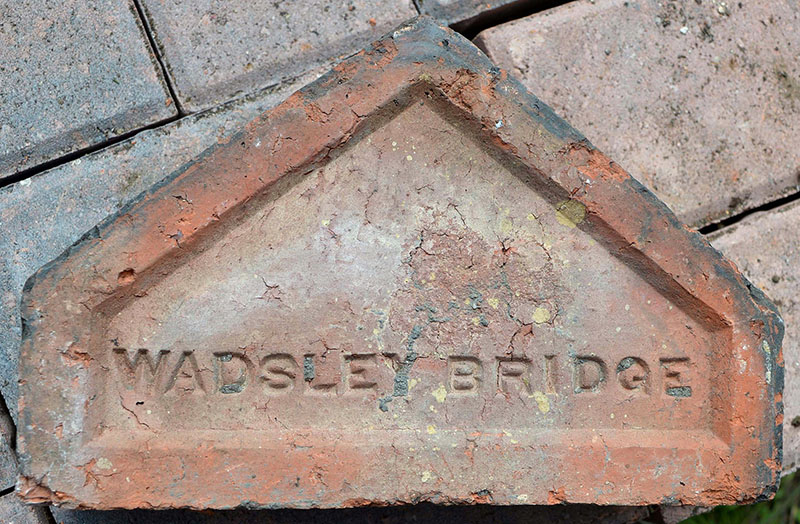

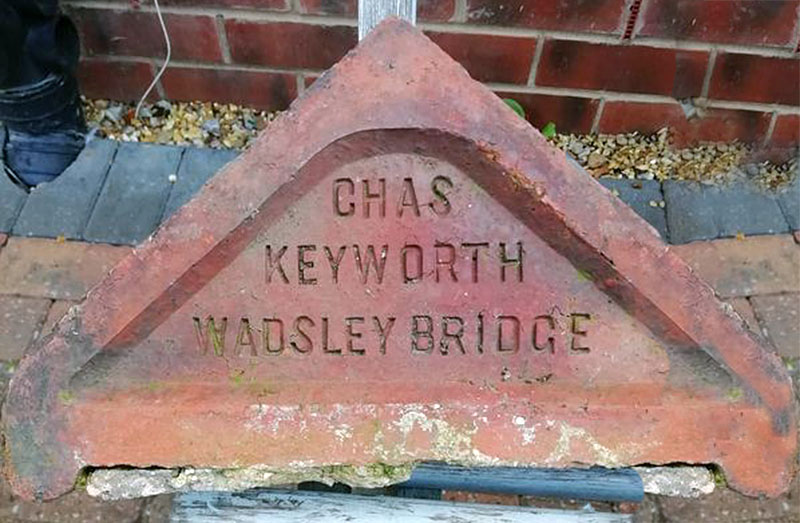

Probably Wadsley Bridge Brick Co., Wadsley Bridge, Sheffield. Photo by Frank Lawson.
Spotted by Phil Shaw in a wall at the side of lock No.1 on the Smethwick flight.
Photo by Simon Patterson, found in Dudley.

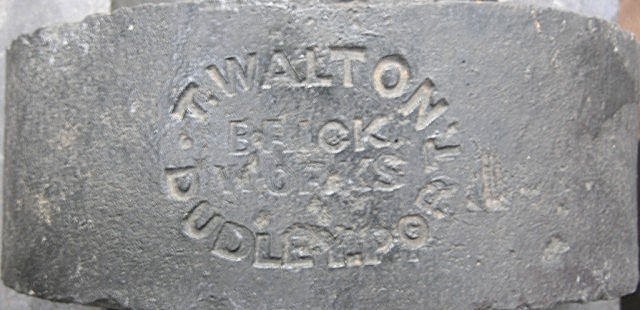

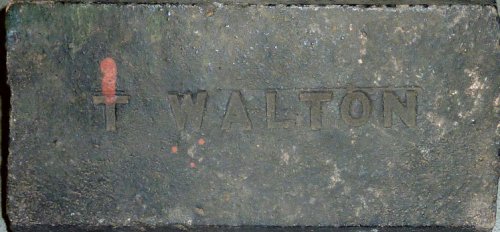

Thomas Walton is listed in Kelly's 1868 to 1880 editions at Dudley Port, Tipton. In 1872 Thomas was living on Park Lane, Tipton & is recorded as taking out a seven year lease on a brickworks in Dudley Port from the Dudley & West Bromwich Banking Co. Info & Photographed at the Black Country Living Museum by Martyn Fretwell.
Spotted by Phil on a towpath bridge on the Walsall Canal

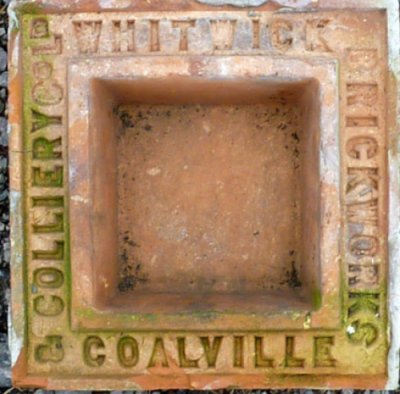

Whitwick Colliery was in Coalville, Leicestershire. This is the underneath to a coping brick which formed a ridge of bricks along the top of a wall. Photographed at Cadeby Reclamation yard by Martyn Fretwell.
Wilson's Sandal Brickworks, Sandal, Wakefield. Photo by Frank Lawson.
Photo by Alan Davies.
Photo by Mallosa.

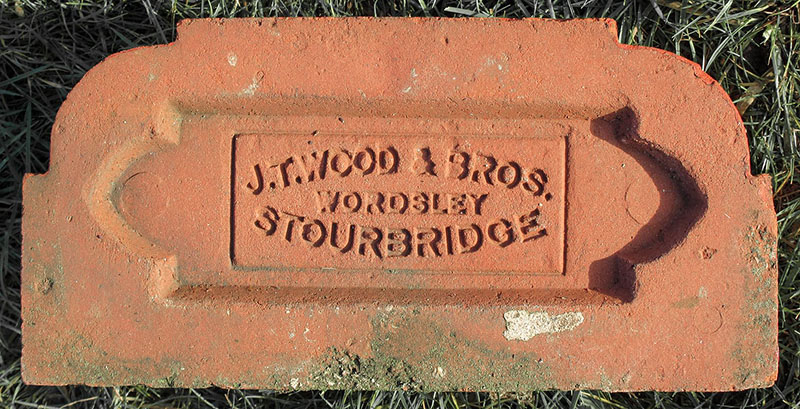

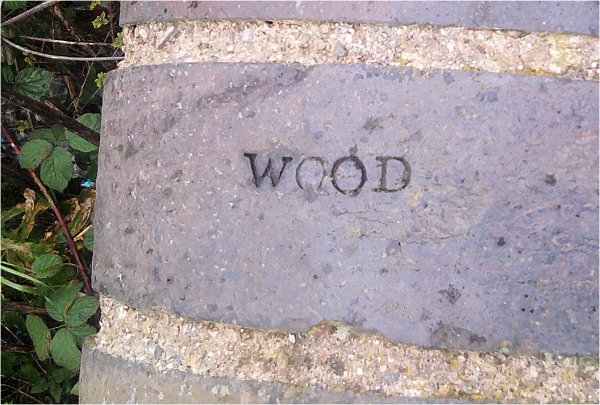

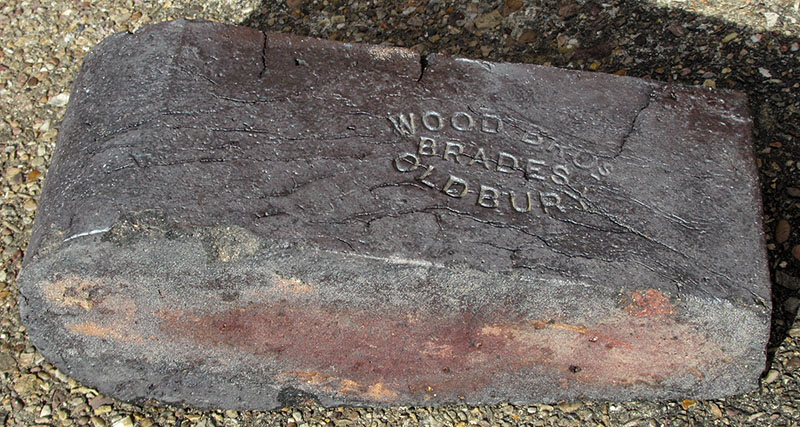

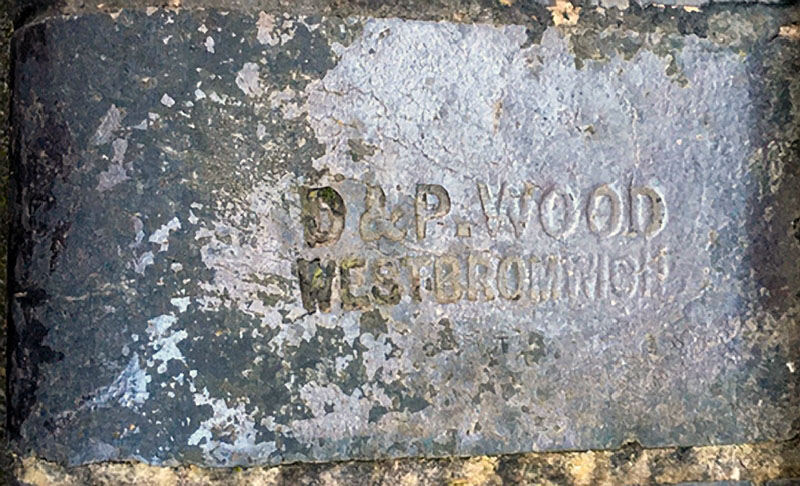

Martyn Fretwell reckons this is Daniel & Peter Wood, Pump House brickworks, West Bromwich probably in the early 1880s. Photo from Harborne by Elizabeth Thomson.
For further information about the Wood family brickworks in the area see Martyn's UK Named Bricks page.
Photo by David Kitching.

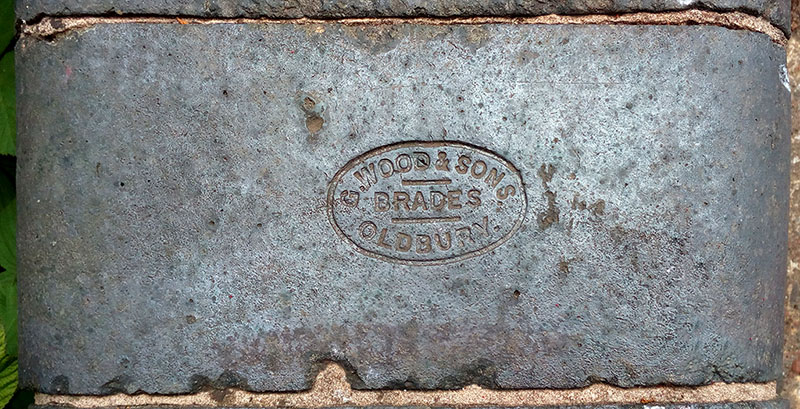

Seen at the old sewage works, Chorlton Eyes, Manchester. Photo by David Kitching.
Spotted by Phil Shaw on a bridge at Dudley Port Junction on Birmingham Level BCN.

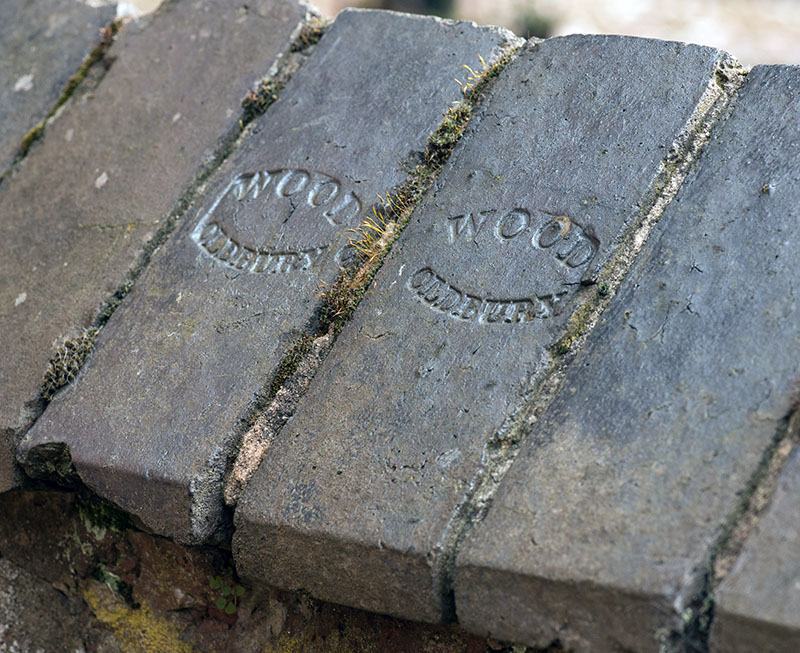

On a garden wall. Photo by Tim Geater.
Photo by Martyn Fretwell.
Photo by Paul Gower.
Found in Edgbaston by Elizabeth Thomson.
Photo by Nigel Megson, found at Stubbs Bridge, Womersley, Yorks. See the entry for Wood & Ivery in the bricks section for more details of the company history.
Seen on lock 29 of the Stratford on Avon canal. Photo by Richard Thorpe.

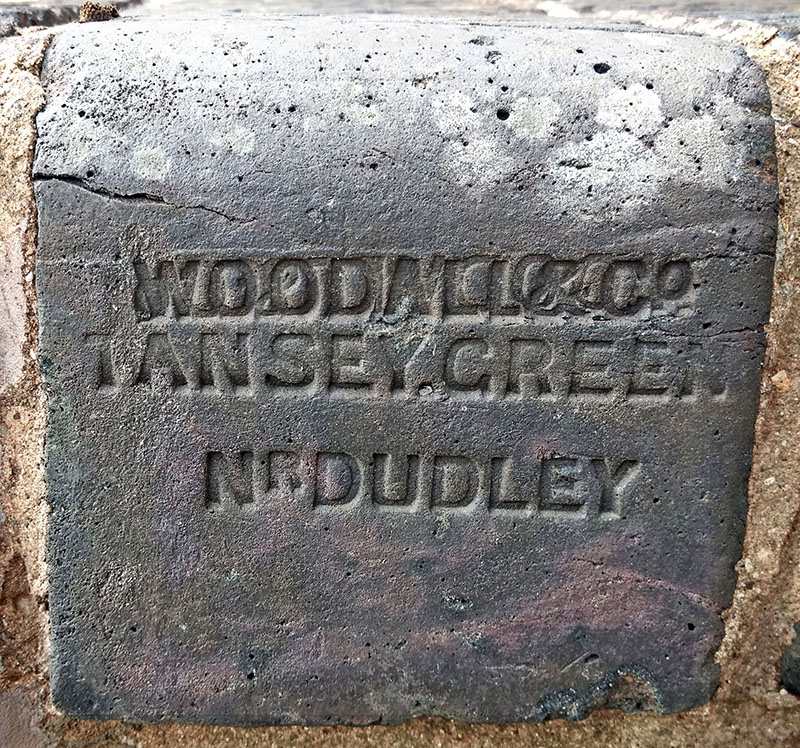

Woodall & Co were coal and brick masters at Tansey Green, Pensnett, Dudley and are listed in Kelly's 1872 edition through to the 1892 edition. The bull nosed edging brick was photographed by Jo Roesen at Winchcombe railway station. Info by Martyn Fretwell.
A terra cotta cover for electric cables, made by Baldwin. Thanks to Simon Patterson for the photo.
This is a a "holed" refractory brick found at the site of a disused ironworks at New Inn, Pontypool by Lawrence Skuse. This is unattributable, but was found with some standard Southwood Jones bricks, and most fire bricks at this site are Southwood Jones, both from Risca and Pontypool. The brick is 9 x 10 x 2 1/4 inches, the holes have a 1 inch bore and go all the way through the brick.
